POLY

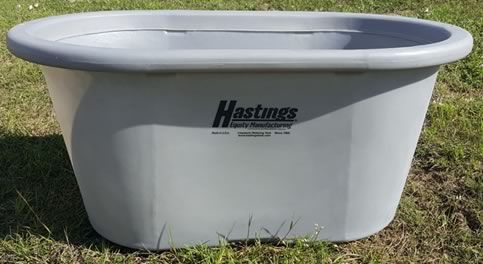

Poly Tanks

Hastings poly tanks are the most rugged on the market and have many great features, such as a closed lip design that will not buckle in crowded pen conditions and a screw in drain plug. Poly tanks are resistant to feedlot acids and will not rust or corrode over time. They are also compounded to resist UV damage from the sun and have a light gray color to keep water cool. Poly tanks come with a 5 year warranty from retail purchase date.

PRODUCT NO. SIZE CAPACITY WEIGHT MSRP
310-010 4’ OBLONG 97 GAL 28 LBS
310-020 6’ OBLONG 160 GAL 43 LBS
310-030 4’ SHALLOW OBLONG 60 GAL 18 LBS
310-035 6’X2’X1’ SHALLOW OBLONG 89 GAL 25 LBS
310-040 6’ ROUND 320 GAL 55 LBS
310-050 8’ ROUND 580 GAL 83 LBS
310-060 10’ ROUND 1100 GAL 135 LBS
310-070 RECTANGULAR 750 GAL 125LBS

OBLONG

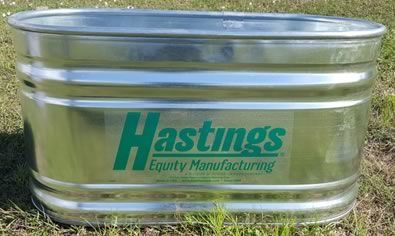

Oblong Galvanized Water Tanks

The Hastings side wall is rolled over ⅞” O.D. steel pipe to enhance strength, rigidity, and life. The smooth surface and water drain plug make this tank easy to clean. The 4 ply bottom seal locks side walls are 22-gauge galvanized steel. Material is measured in accordance with AISI standards (20 gauge is .036 min. and 22 gauge is .030 min). Standard sidewall height is 2’ and shallow height is 1’ tall.

Hastings tanks are guaranteed to be free from defects in workmanship and material.

Tanks are warranted for one year after manufacture date.

PRODUCT NO. SIZE CAPACITY WEIGHT MSRP
300-120 3’ OBLONG 74 GAL 32 LBS
300-130 4’ OBLONG 102 GAL 44 LBS
300-140 5’ OBLONG 131 GAL 54 LBS
300-150 6’ OBLONG 159 GAL 64 LBS
300-155 6’X 2.5’X 2’ OBLONG 195 GAL 69 LBS
300-160 7’ OBLONG 231 GAL 80 LBS
300-170 8’ OBLONG 266 GAL. 90 LBS
300-171 8’X 3’ X2’ OBLONG 314 GAL 97 LBS
300-175 10’ OBLONG 400 GAL 120 LBS
300-180 4’ SHALLOW OBLONG 48 GAL 34 LBS
300-190 5’ SHALLOW OBLONG 62 GAL 40 LBS
300-200 6’ SHALLOW OBLONG 75 GAL 46 LBS
300-202 8’ SHALLOW OBLONG 103 GAL 58 LBS

ROUND

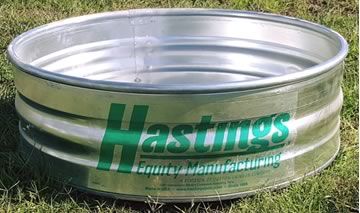

Round Galvanized Water Tanks

Ranger Gate Co. offers many different sizes of round stock tanks (from 3 to 10 ft diameter) in galvanized steel. Tank capacities range from 50 to 1115 gallons. All tank sides are made of 22-gauge galvanized steel and all tank bottoms are made of 20-gauge galvanized steel. Standard sidewall height is 2’ and shallow height is 1’ tall.

Hastings round stock tanks are made without a protruding flange at the bottom of the tank to avoid damage by livestock. The 3’ through 10’ diameter tanks have a side wall rolled over ⅞” O.D. steel pipe for added strength, rigidity, and life.

Hastings tanks are guaranteed to be free of defects in material and workmanship. Hastings tanks are warranted for one year from manufacture date.

PRODUCT NO. SIZE CAPACITY WEIGHT MSRP
300-010 3’ ROUND 101 GAL 38 LBS
300-020 4’ROUND 180 GAL 55 LBS
300-030 5’ ROUND 281 GAL 75 LBS
300-040 6’ ROUND 404 GAL 106 LBS
300-050 7’ ROUND 550 GAL 134 LBS
300-060 8’ ROUND 718 GAL 150 LBS
300-070 9’ ROUND 909 GAL 183 LBS
300-080 10’ ROUND 1122 GAL 225 LBS
300-090 3’ SHALLOW ROUND 48 GAL 29 LBS
300-100 4’ SHALLOW ROUND 86 GAL 47 LBS
300-110 5’ SHALLOW ROUND 134 GAL 62 LBS
300-115 6’ SHALLOW ROUND 192 GAL 84 LBS
300-116 7’ SHALLOW ROUND 262 GAL 100 LBS
300-117 8’ SHALLOW ROUND 342 GAL 122 LBS

durapatch

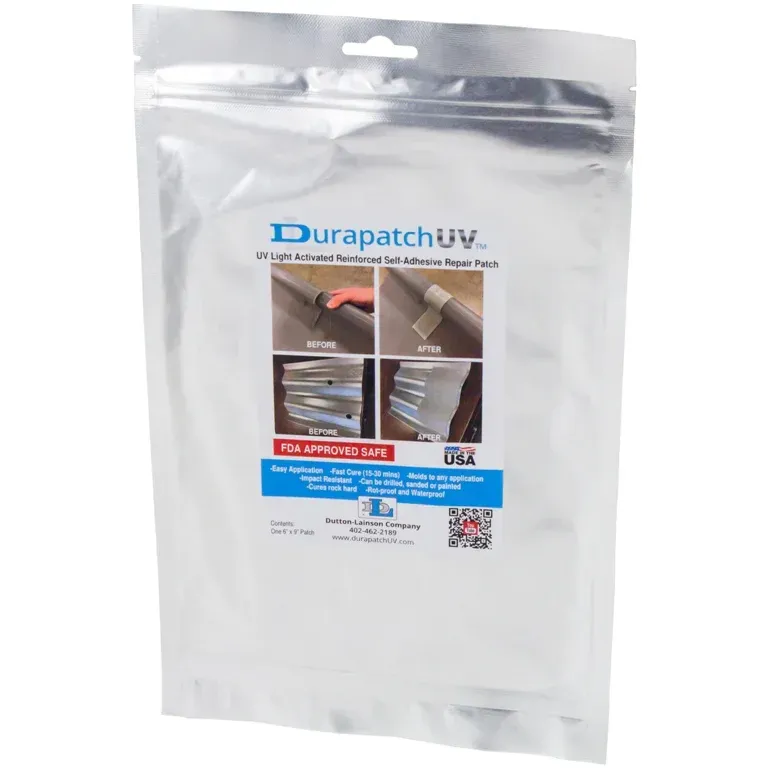

durapatch

Durapatch is a very unique, easy-to-use UV or sunlight activated, self-adhesive repair patch. It is reinforced Polyester with extremely good adhesion properties for long lasting repairs. The patch is non flammable, non-toxic, and the adhesive is not harmful to the skin. Easy to apply, no mixing, no weighing - one step, no mess. FDA approved safe.

PRODUCT NO. SIZE QTY MSRP
116-300023 DURAPATCH 2X3 48/EACH
116-300036 DURAPATCH 3X6 12/EACH
116-300069 DURAPATCH 6X9 12/EACH
116-300912 DURAPATCH 9X12 6/EACH
