CATTLE
BUNK FEEDERS

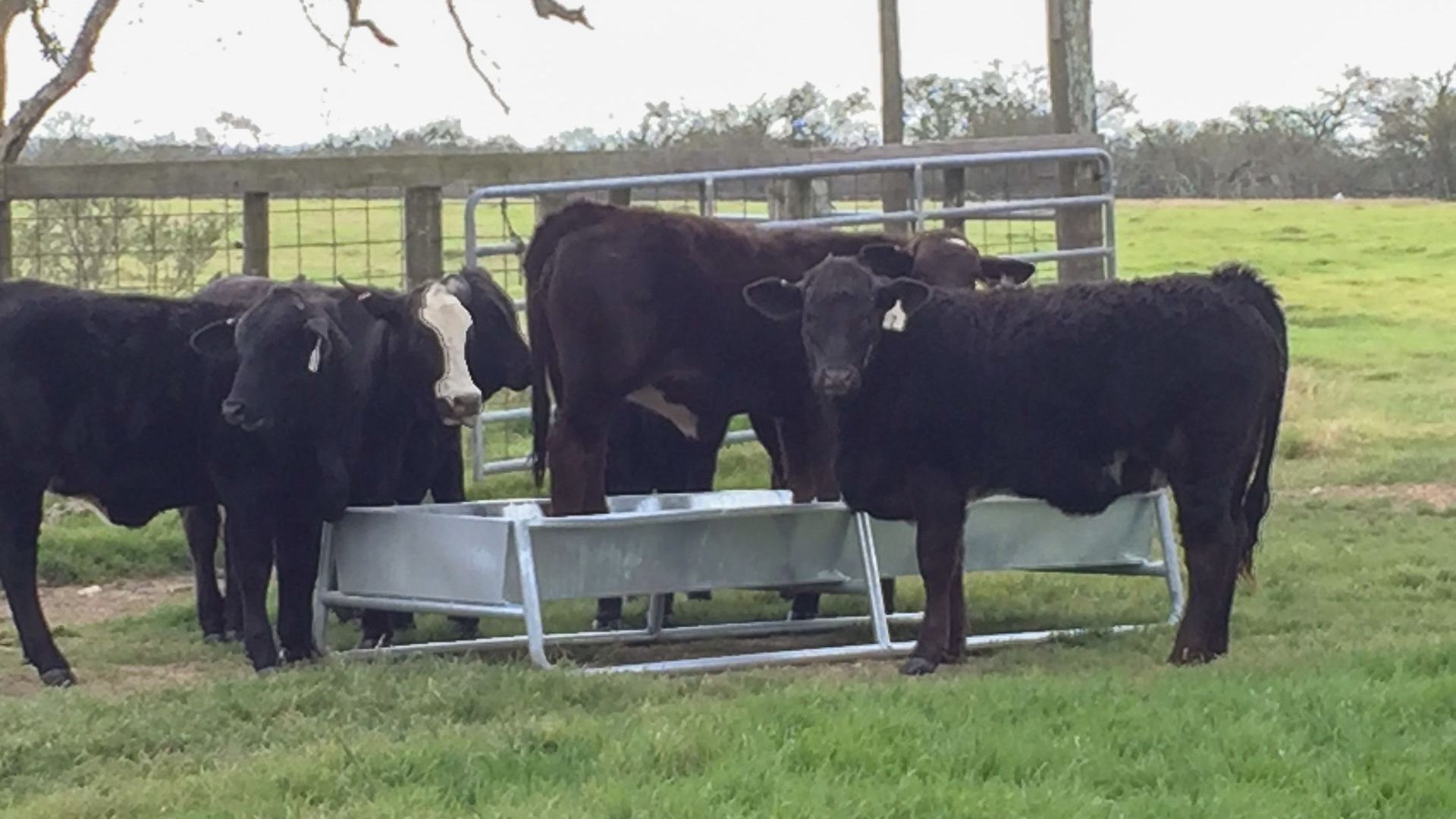

HOT DIPPED HEAVY DUTY BUNK FEEDER

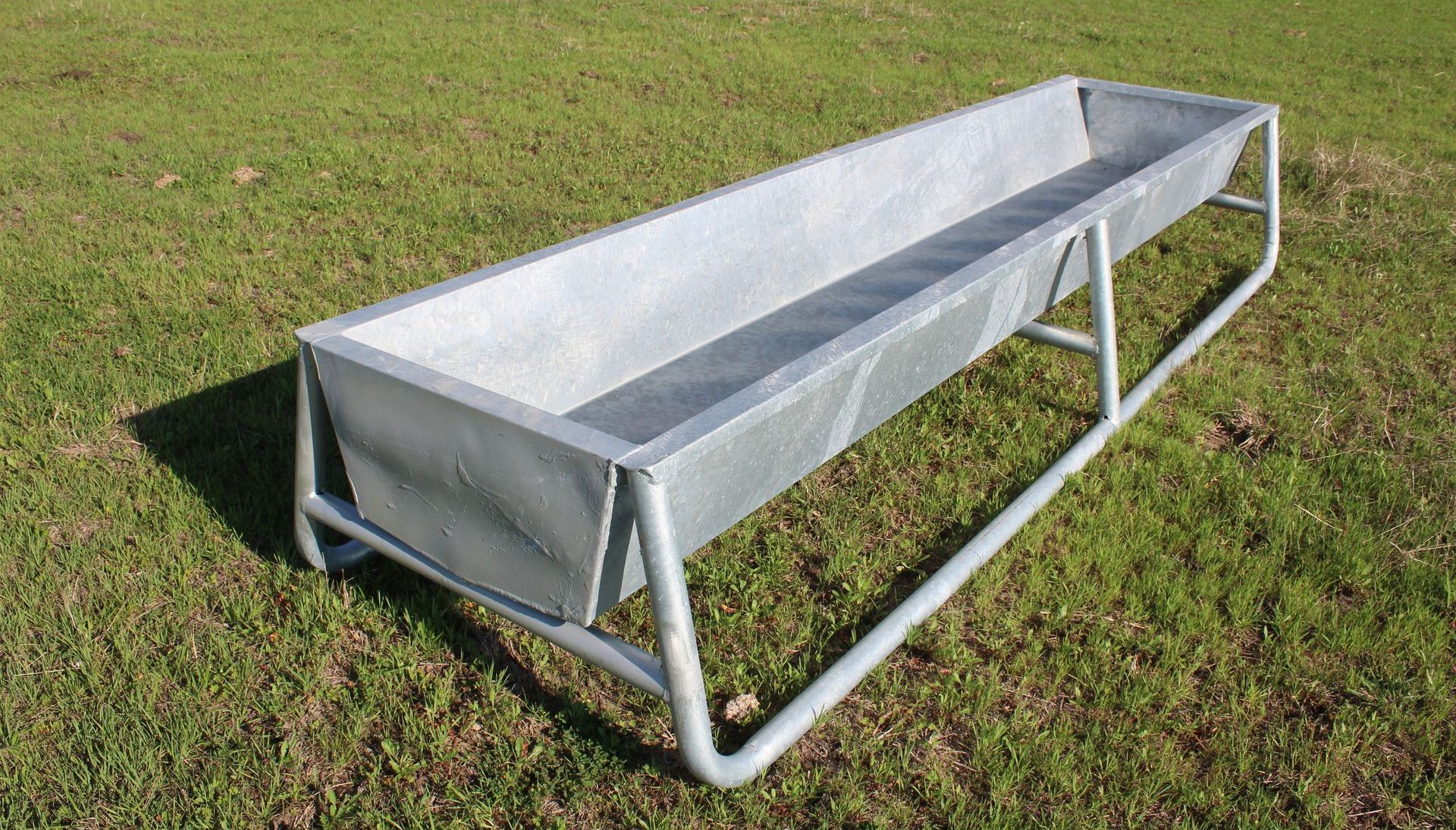

The feeders that last a lifetime. Our hot dipped galvanized bunk feeder is made from 2” 16 gauge tubing and 16 gauge sheet metal, making it the longest lasting and toughest bunk feeder on the market. Troughs are 20’ tall and available in 2’x10’ and 3’x10’ lengths. Drain holes on the ends prevent water from collecting in the feed.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 277-800 | 2’X10" | 178 | |
| 277-810 | 3’X10” | 218 |
RANgER BUNK FEEDER

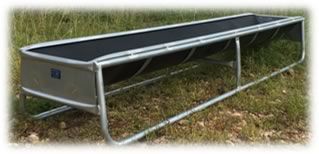

Another great bunk feeder we make is the Ranger bunk. It features a 1 ⅝” 16 gauge frame and sheet metal ends that hold the poly lined trough in place.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 290-160 | 6' | 58 | |
| 290-170 | 11’ | 102 |
RGC BUNK FEEDER

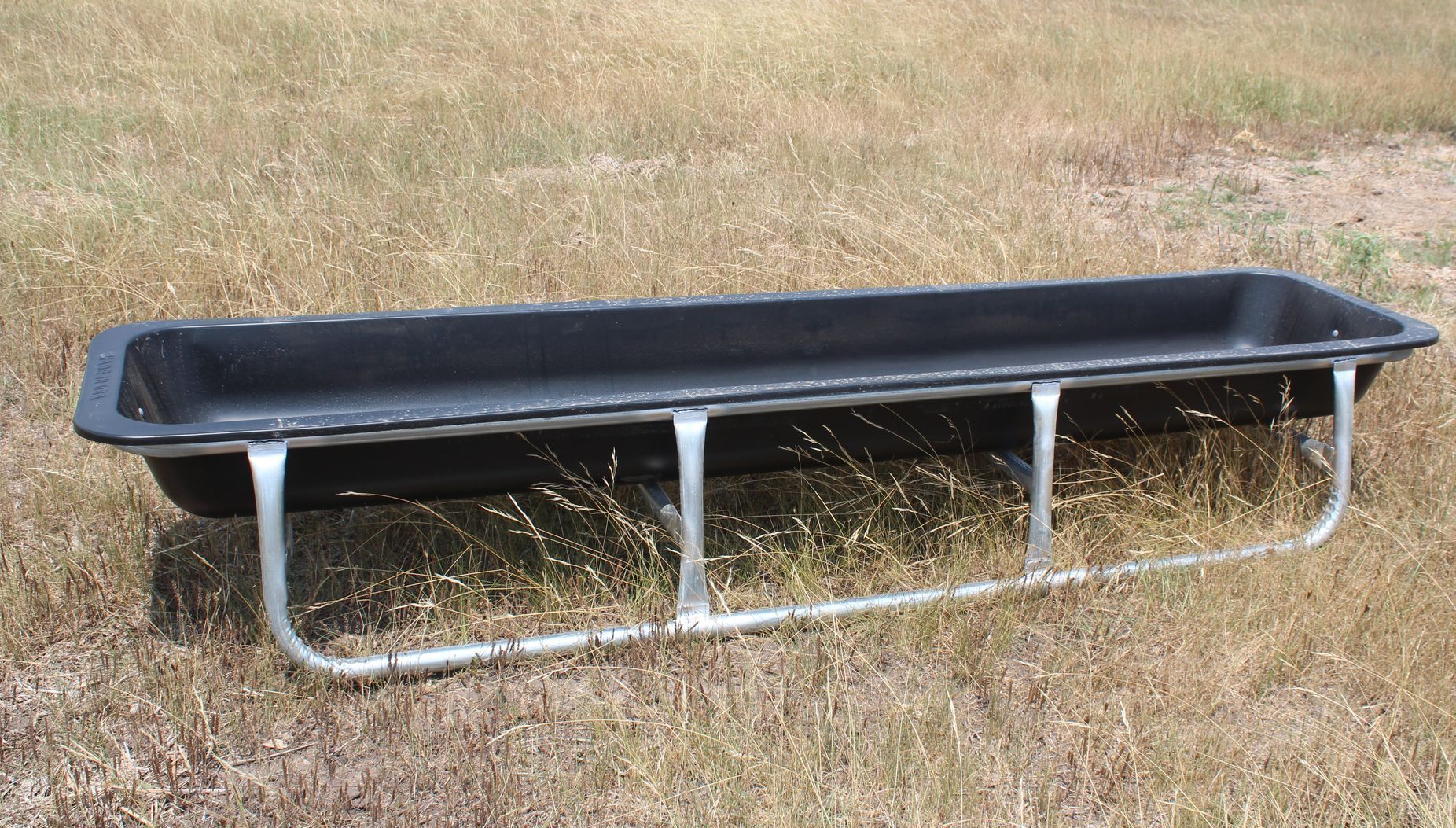

Our RGC bunk feeder features a galvanized frame and a one piece poly liner that is connected with a clamp around the frame. A great product at a lower price.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 870-010 | 5' | 28 | |
| 870-001 | 10’ | 54 |

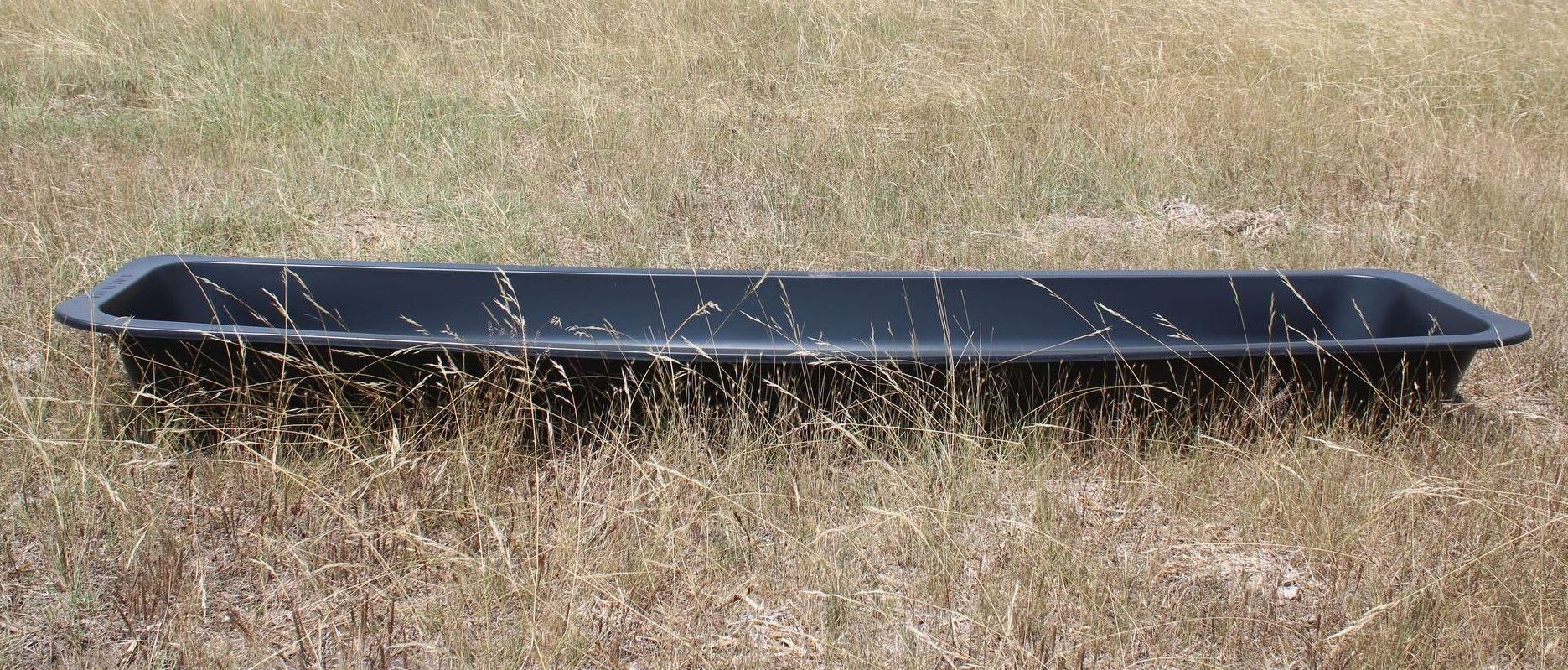

BUNK FEEDER REPLACEMENT LINERS
| PRODUCT NO. | LENGTH | MSRP |
|---|---|---|
| 320-107 | 6’ RANCHER | |
| 320-110 | 11’ RANCHER | |
| 320-140 | MINERAL FEEDER BUCKET | |
| 320-160 | 5’ RGC MOLDED LINER | |
| 320-170 | 10’ RGC MOLDED LINER |
Bunk Feeder Hay Rack
Designed to be clamped to the top of a bunk feeder our hay racks are a great addition to have when owning a bunk feeder. They feature 6x6” wire on the front and back and 4x4” 6 gauge wire on the sides.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 290-182 | 6’ RANCHER | 50 | |
| 290-196 | 11’ RANCHER | 82 | |
| 870-030 | 5’ RGC | 64 | |
| 870-040 | 10’ RGC | 95 |

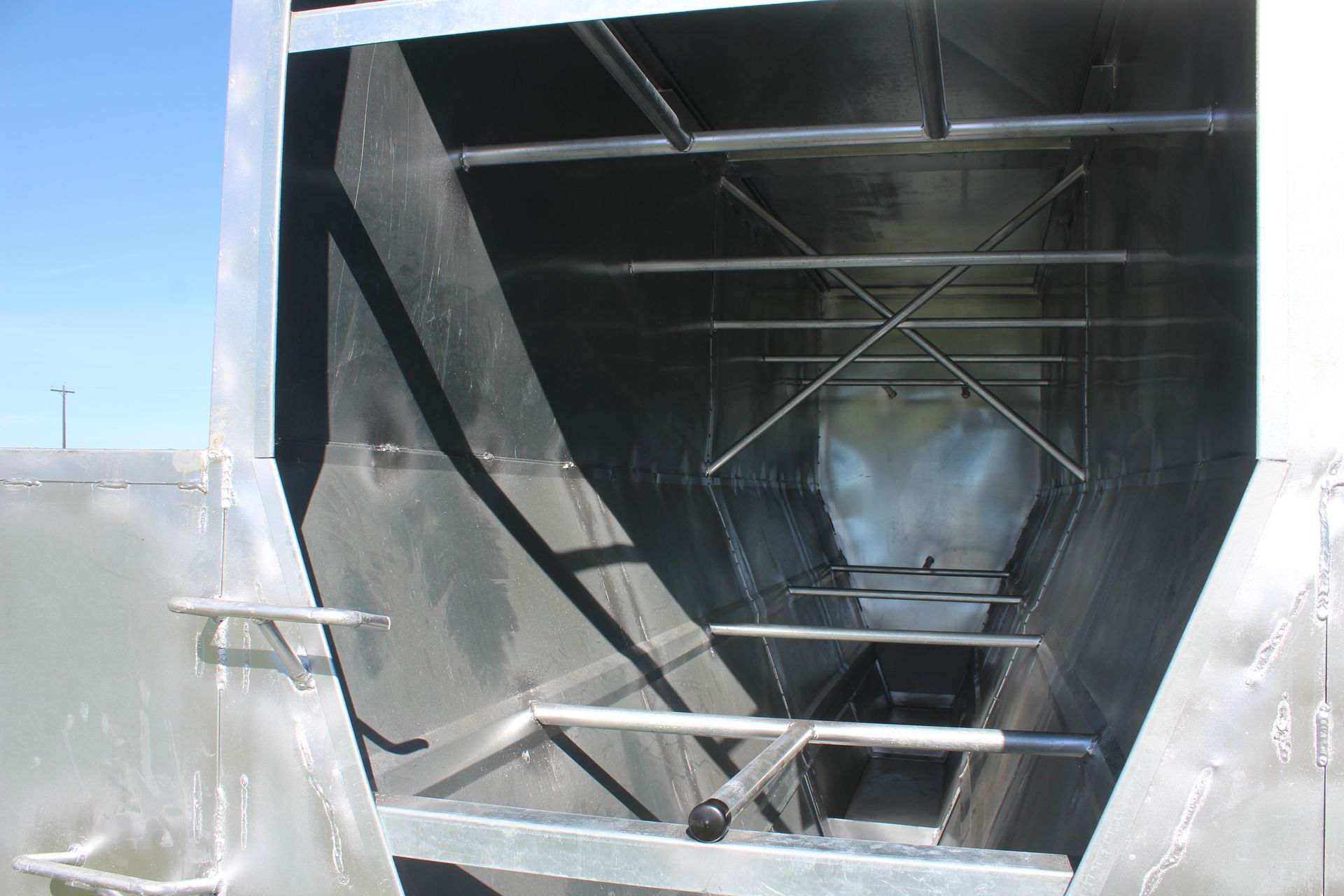

BULK FEEDERS

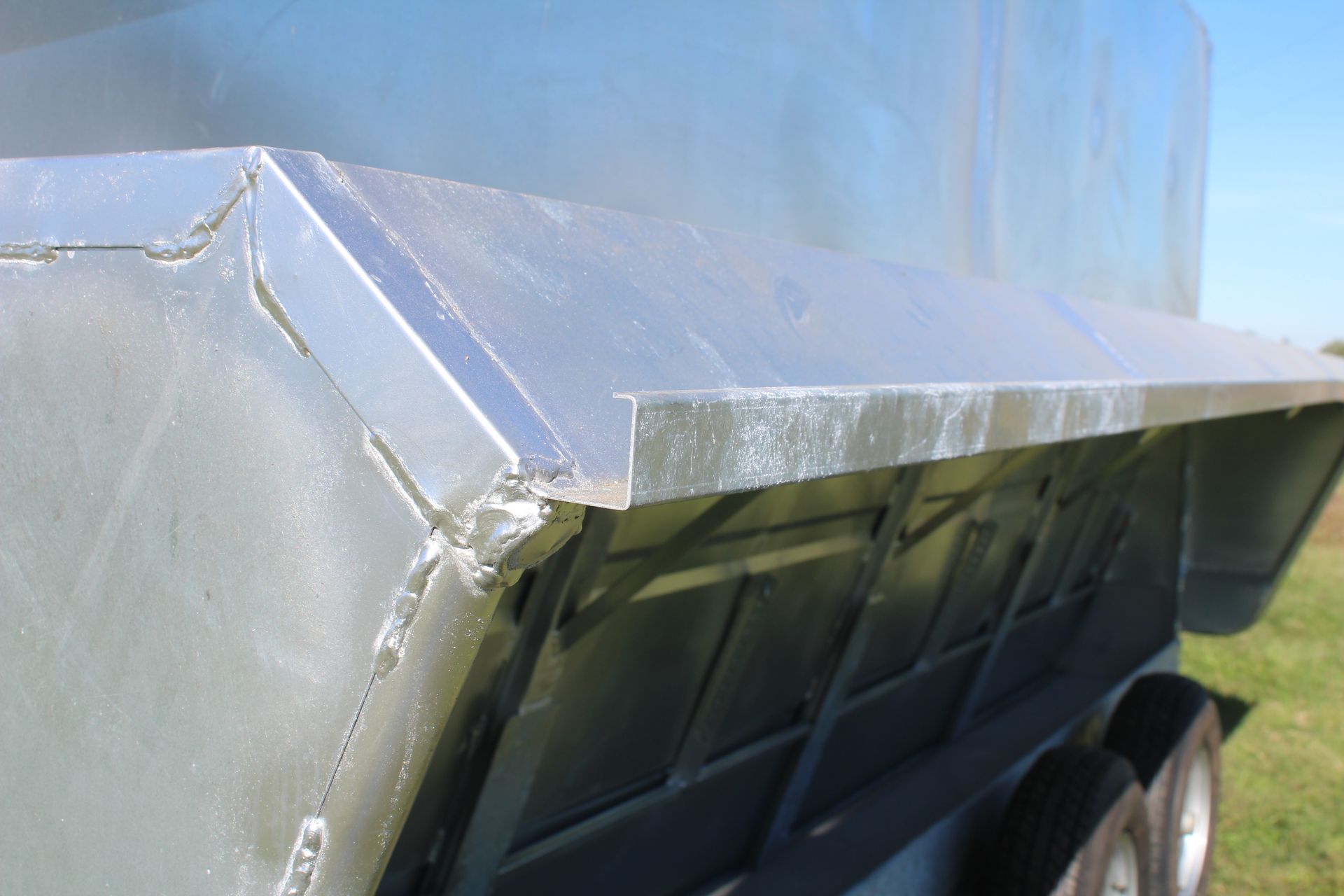

Ranger Gate bulk feeders feature G90 domestic galvanized sheet metal for years of corrosion free usage. The 14 gauge adjustable doors allow you to set the amount of feed that comes out of the feeder and 7 ½’ wide sliding doors on top of the feeder allows trouble free loading. A ¼” heavy duty poly trough guarantees a never rust out trough and is equipped with a easy open clean out door. Models are available with wheels or skids for ranchers and feedlot usage. All trailers come with new tires and axles.

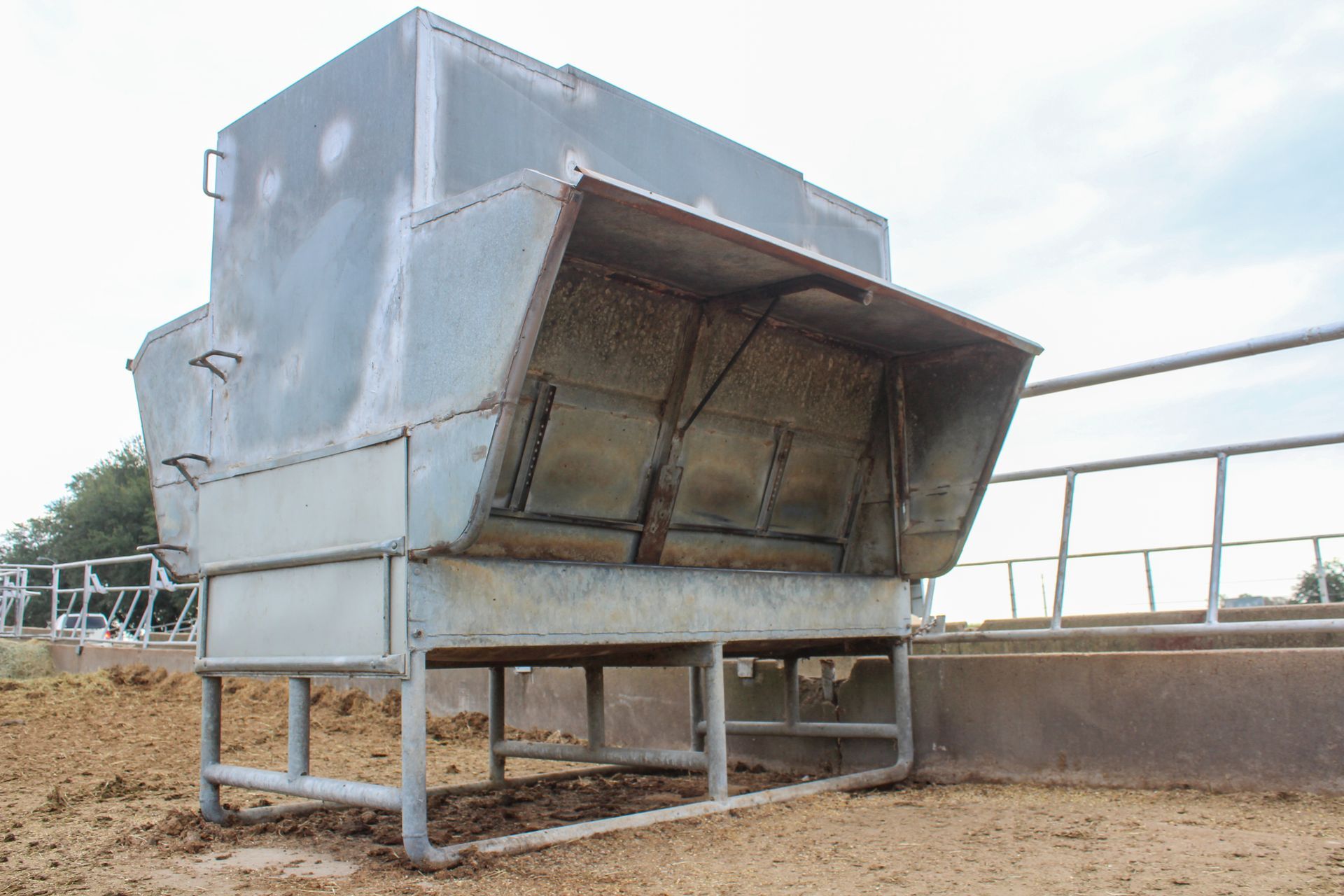

FEEDLOT MODEL ON SKIDS
The feedlot model has hot dipped galvanized skids
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 350-029 | 4' 1 Ton | ||
| 350-027 | 8' 2 Ton | ||
| 350-037 | 8' 3 Ton | ||
| 350-047 | 12' 4.5 Ton | ||
| 350-057 | 16' 6 Ton | ||
| 350-060 | 20' 8 Ton |

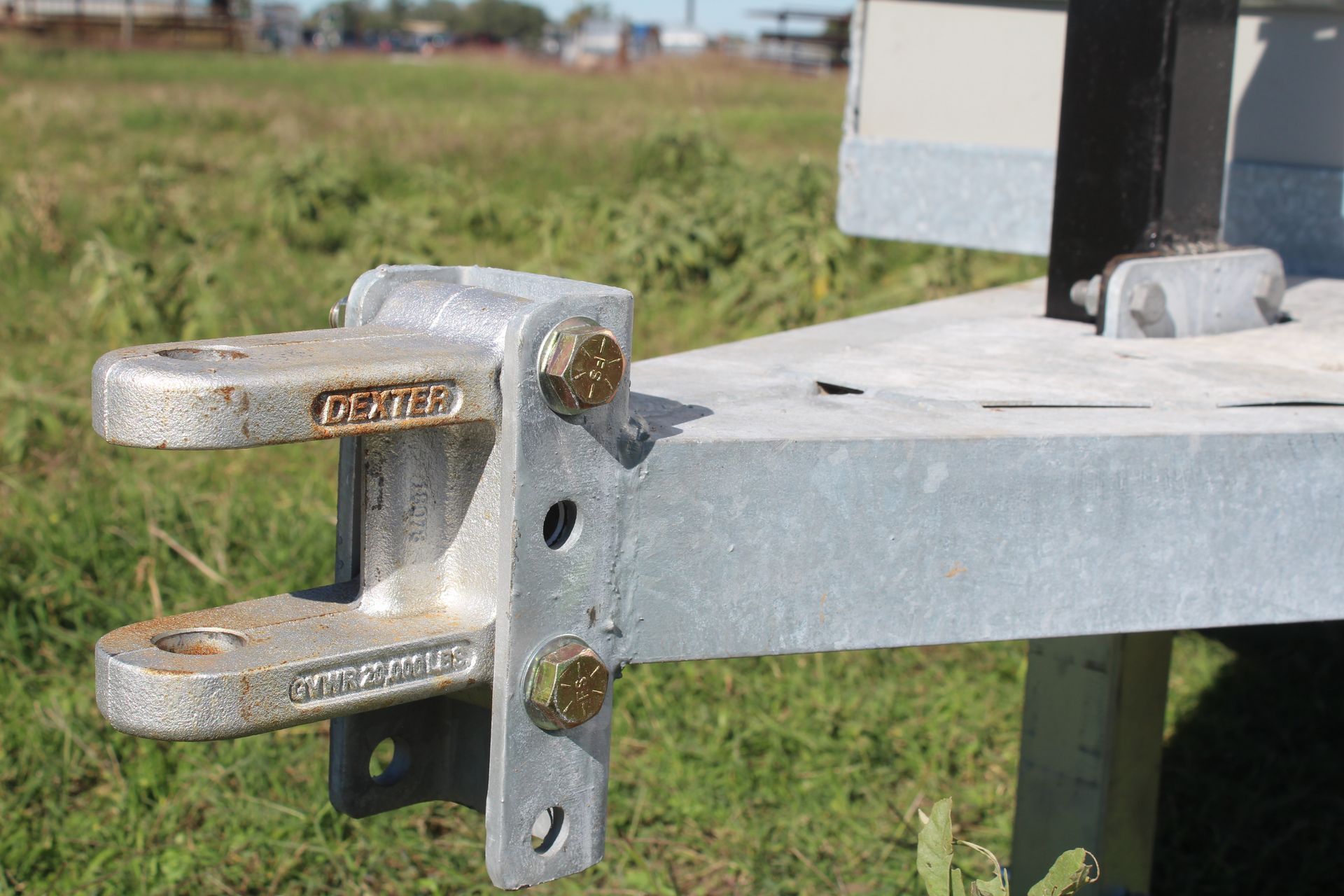

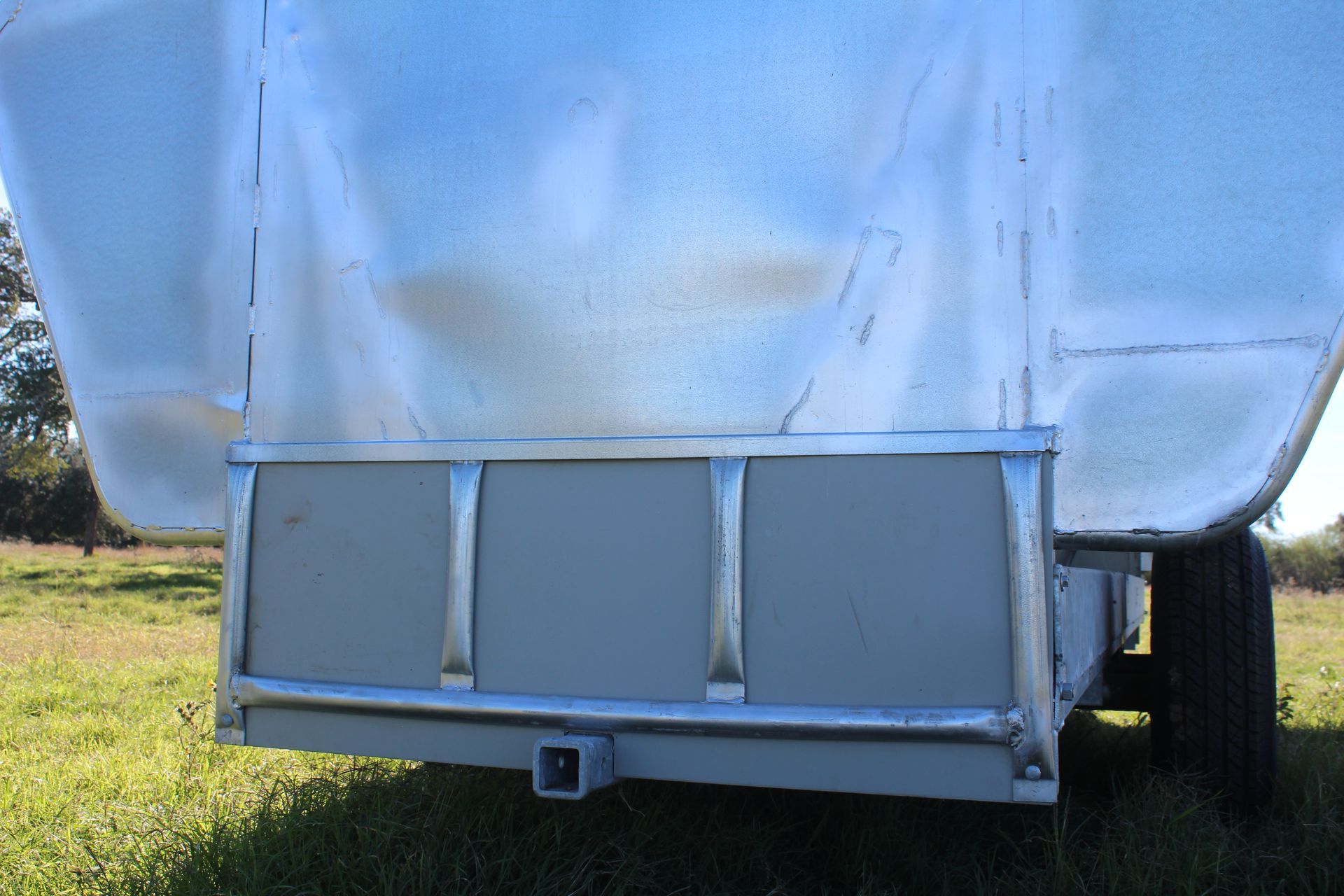

FLEET MODELS
Fleet models come standard with hot dipped galvanized 3/16” trailer frames.

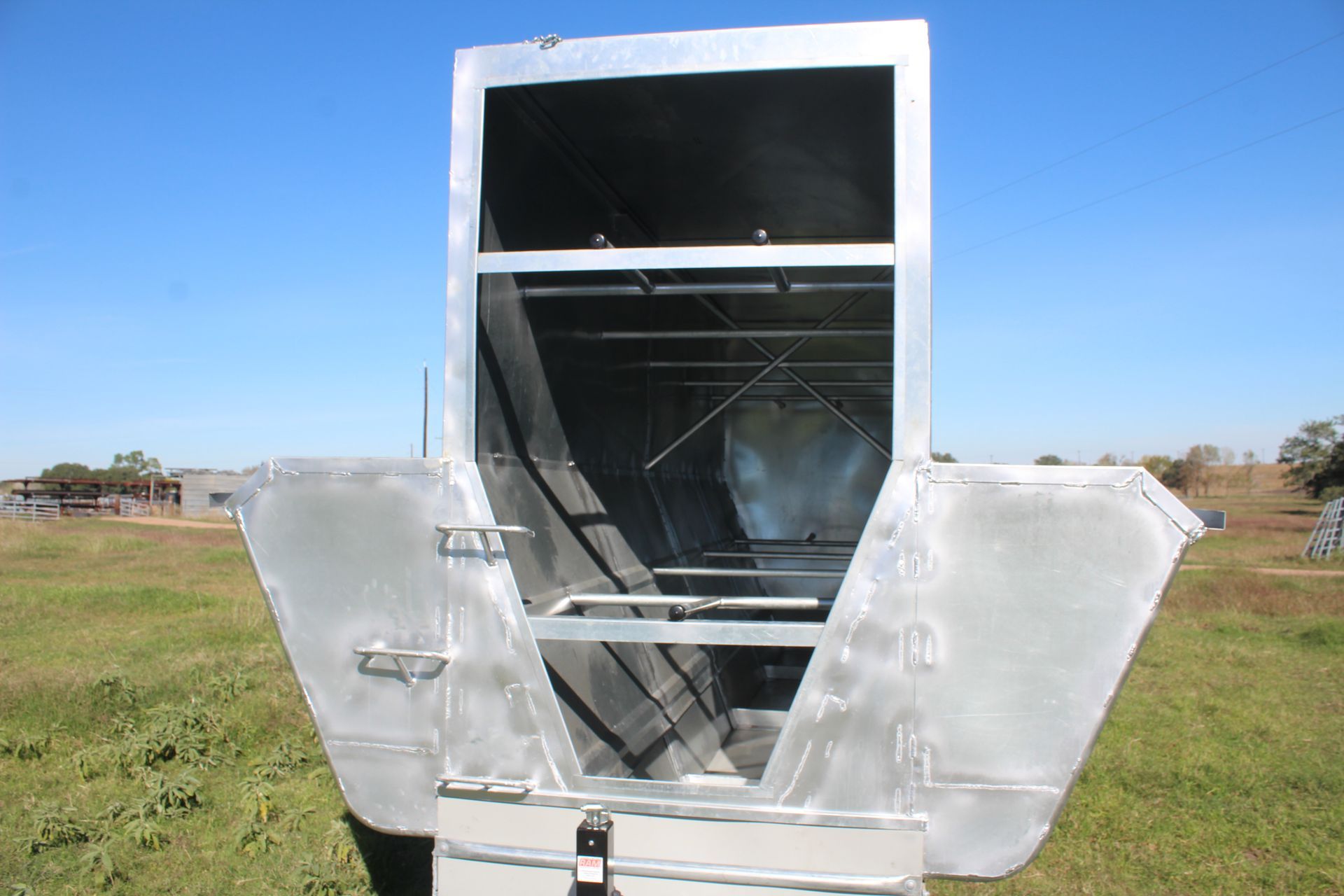

16' 6 Ton Bulk Feeder on Wheels (opened up for demo)
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 350-032 | 8' 3 Ton 5200 lb Axle | ||
| 350-032-01 | 8' 3 Ton 6000 lb Axle | ||
| 350-042 | 12' 4.5 Ton 5200 lb Axles | ||
| 350-042-01 | 12' 4.5 Ton 6000 lb Axles | ||
| 350-052 | 16' 6 Ton 5200 lb Axles | ||
| 350-052-01 | 16' 6 Ton 6000 lb Axles |

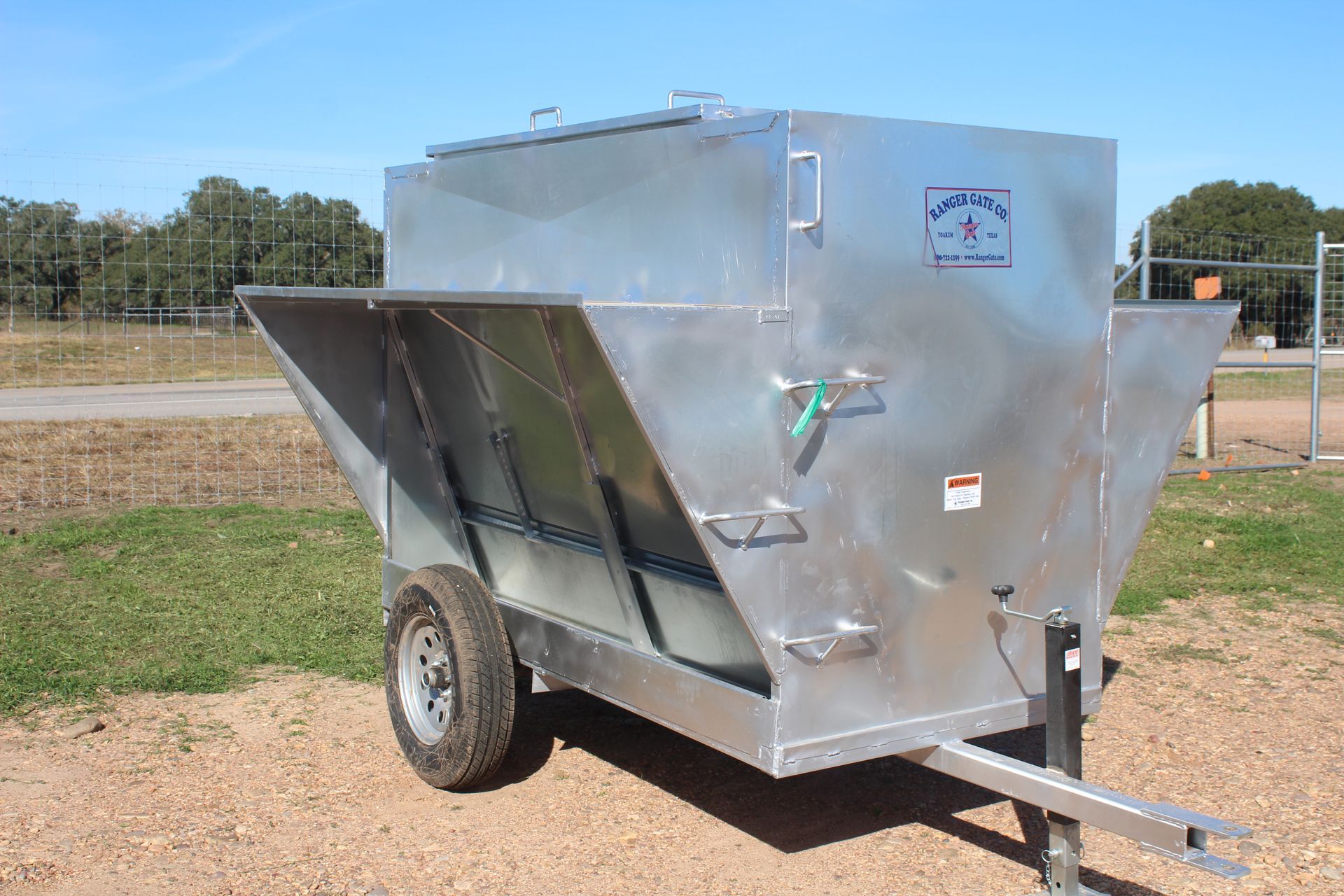

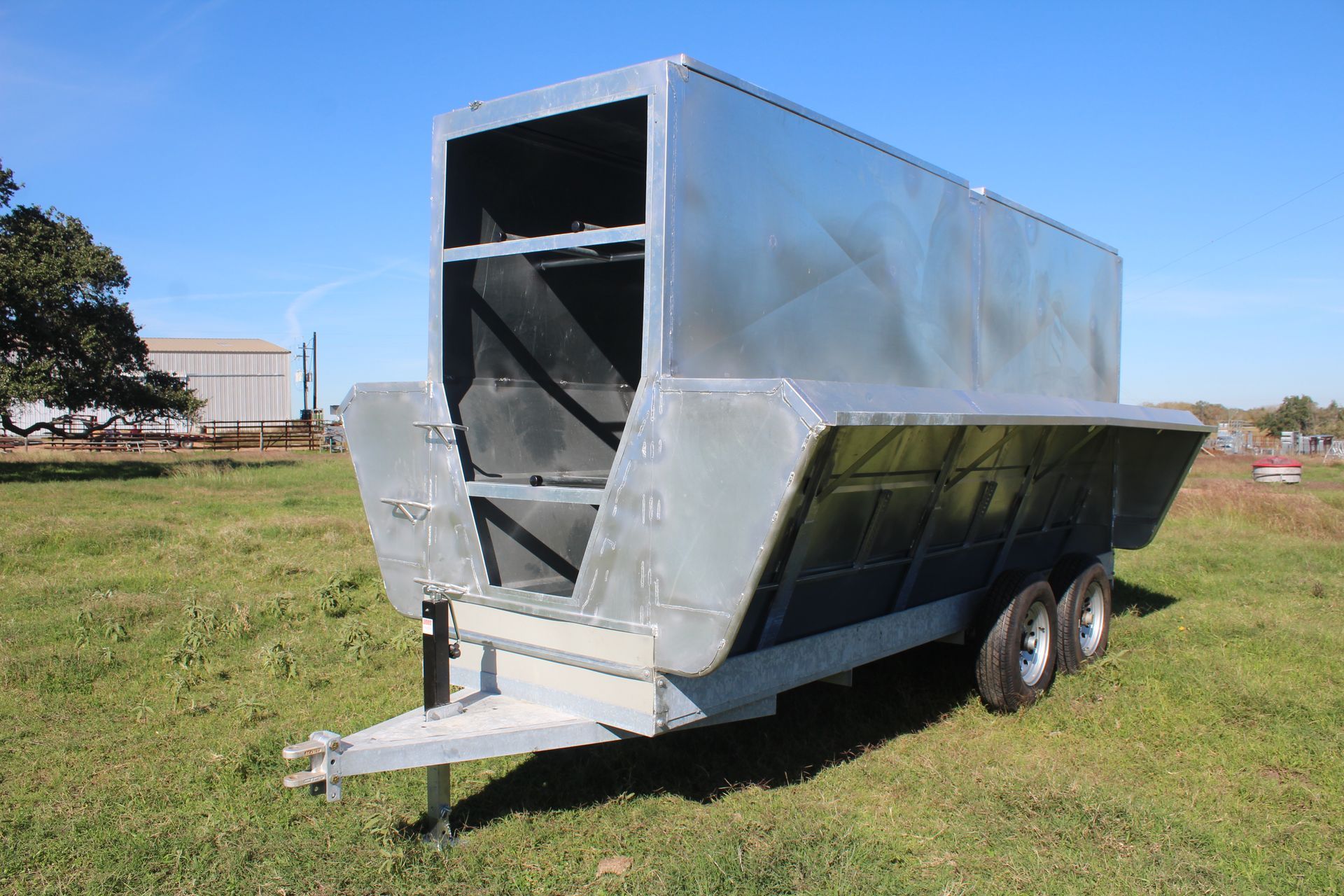

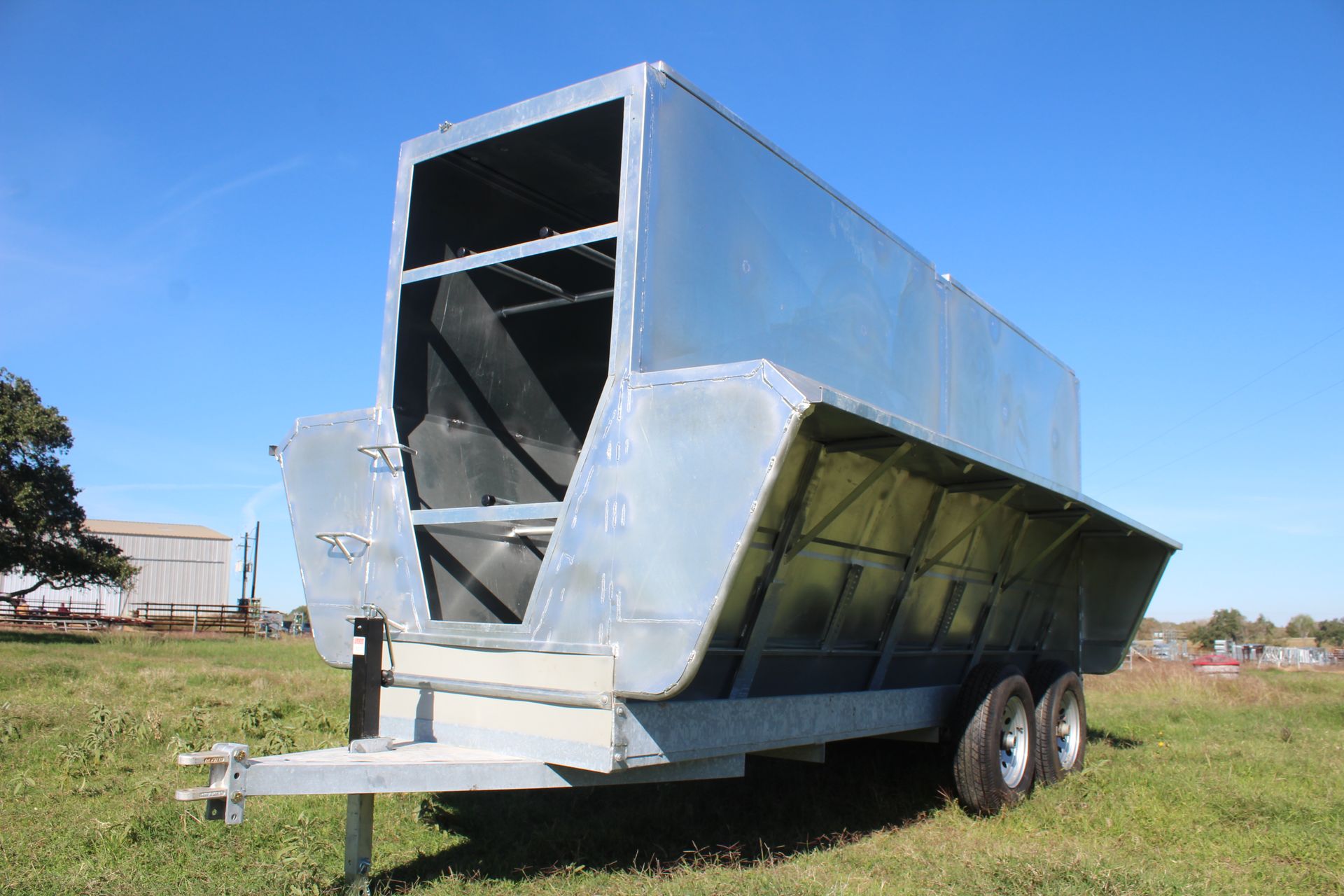

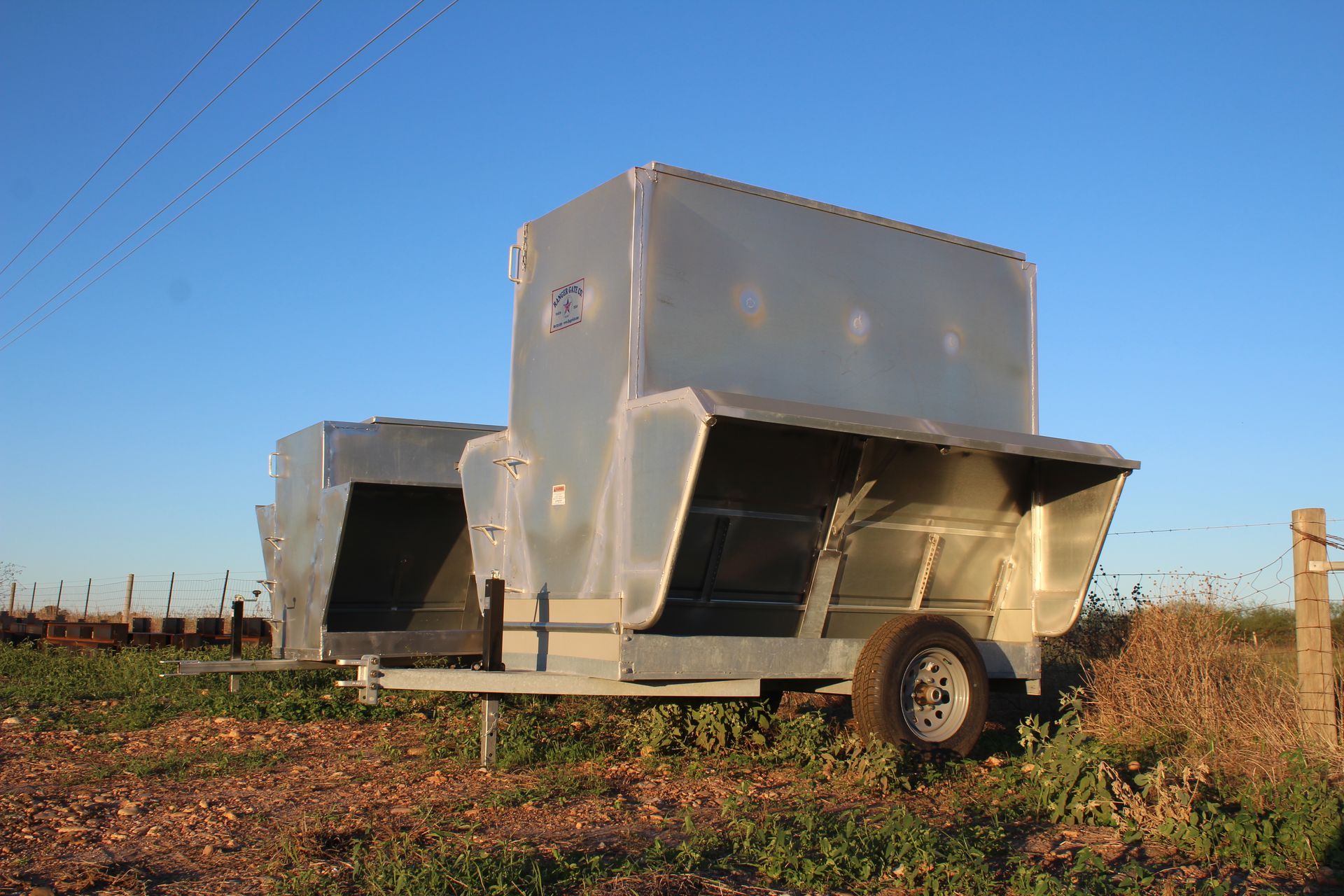

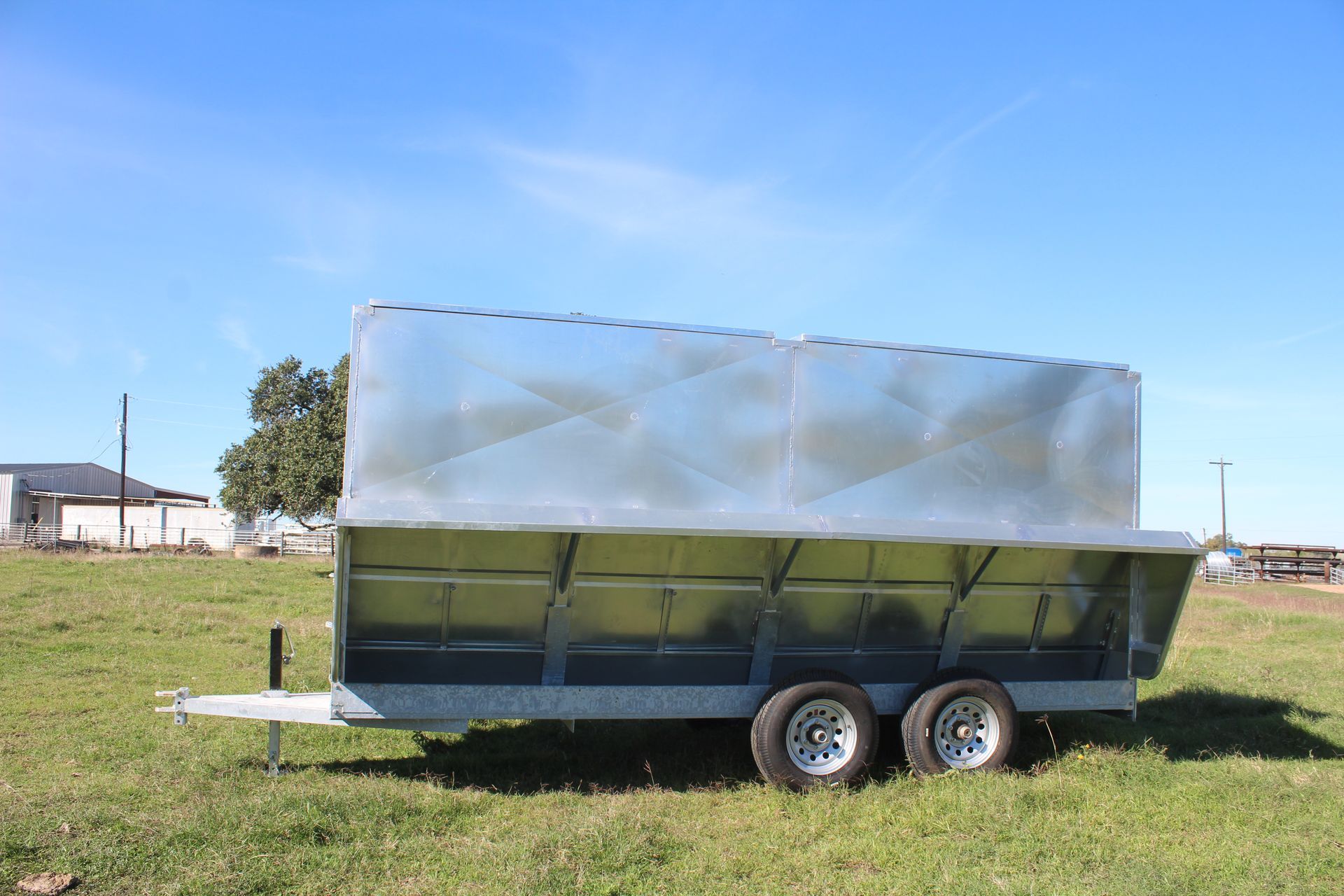

8' 3 Ton Bulk Feeder on Wheels

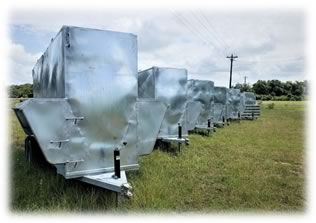

RANCHER MODELS
Rancher models have a ¼” hot dipped galvanized trailer frame.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 350-032-02 | 8' 3 Ton 6000 lb Axle | ||
| 350-032-03 | 8' 3 Ton 7000 lb Axle | ||
| 350-042-02 | 12' 4.5 Ton 6000 lb Axles | ||
| 350-042-03 | 12' 4.5 Ton 7000 lb Axles | ||
| 350-052-02 | 16' 6 Ton 6000 lb Axles | ||
| 350-052-03 | 16' 6 Ton 7000 lb Axles |
BULK FEEDER ACCESSORIES & PARTS
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 350-095 | 8’ SLIDIING CREEP CAGES (SET) | ||
| 279-010 | 16’ 5 BAR SIDE PANEL | 94 | |

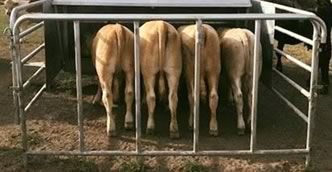

| 279-015 | 8’ CREEP ENTRANCE PANEL | 58 | |
| 279-017 | 12’ CREEP ENTRANCE PANEL | 87 | |
| 279-020 | 16’ CREEP ENTRANCE PANEL | 116 | |
| 350-080 | 8’ HOG GUARD SET | 52 | |
| 350-085 | 12’ HOG GUARD SET | 78 | |
| 350-090 | 16’ HOG GUARD SET | 104 | |
| 351-010 | ADJUSTABLE SIDE REPLACEMENT DOOR | ||
| 351-020 | 5200LB REPLACEMENT AXLE 6 LUG | ||
| 351-025 | 5200LB REPLACEMENT TIRE & WHEEL | ||
| 351-040 | 6000LB REPLACEMENT AXLE 6 LUG | ||
| 351-045 | 6000LB REPLACEMENT TIRE & WHEEL | ||
| 351-060 | 7000LB REPLACEMENT AXLE 8 LUG | ||
| 351-065 | 7000LB REPLACEMENT |

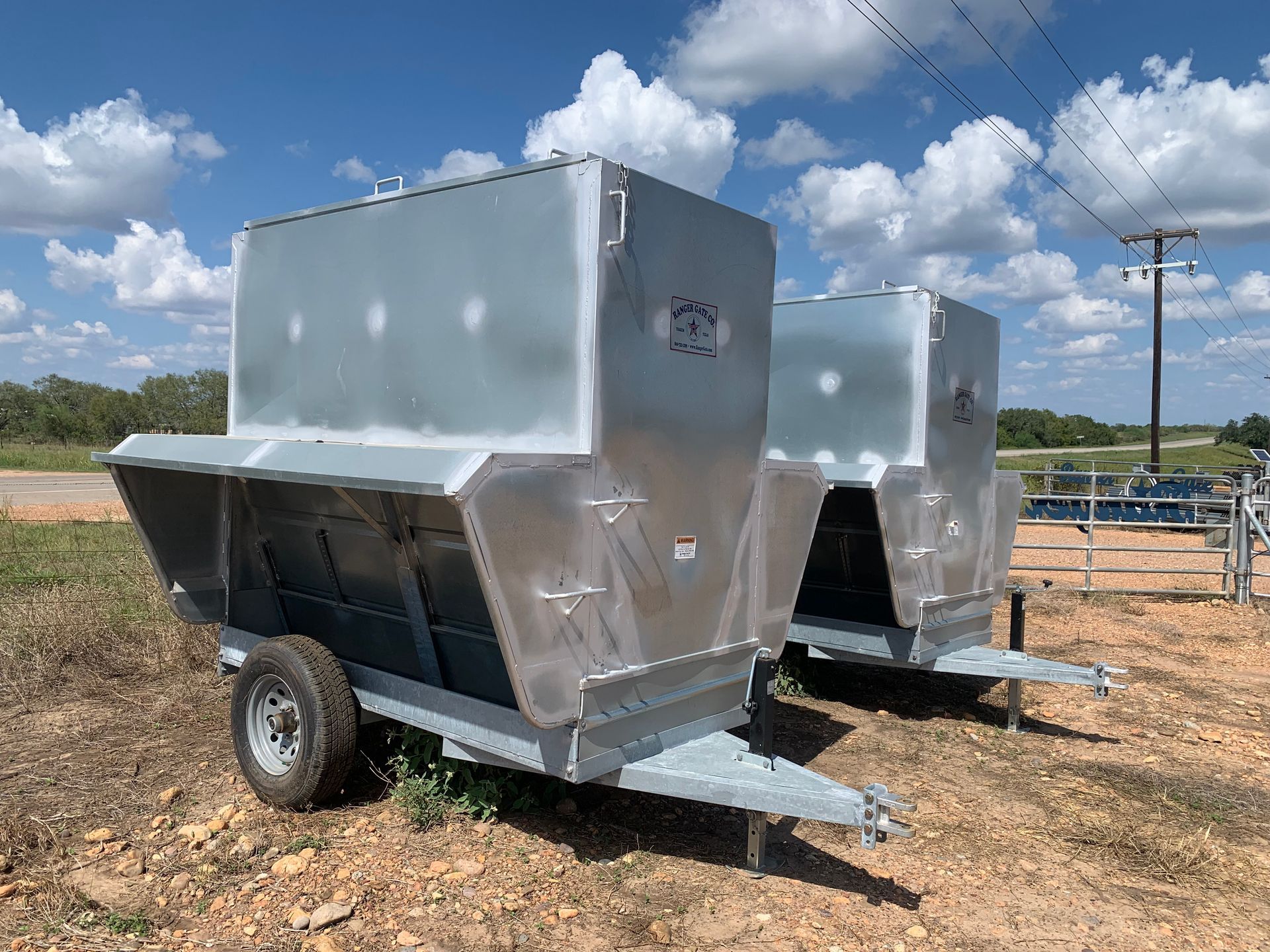

BULK FEEDER ON WHEELS
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 350-070 | 8' Value Bulk Feeder |
CREEP FEEDERS

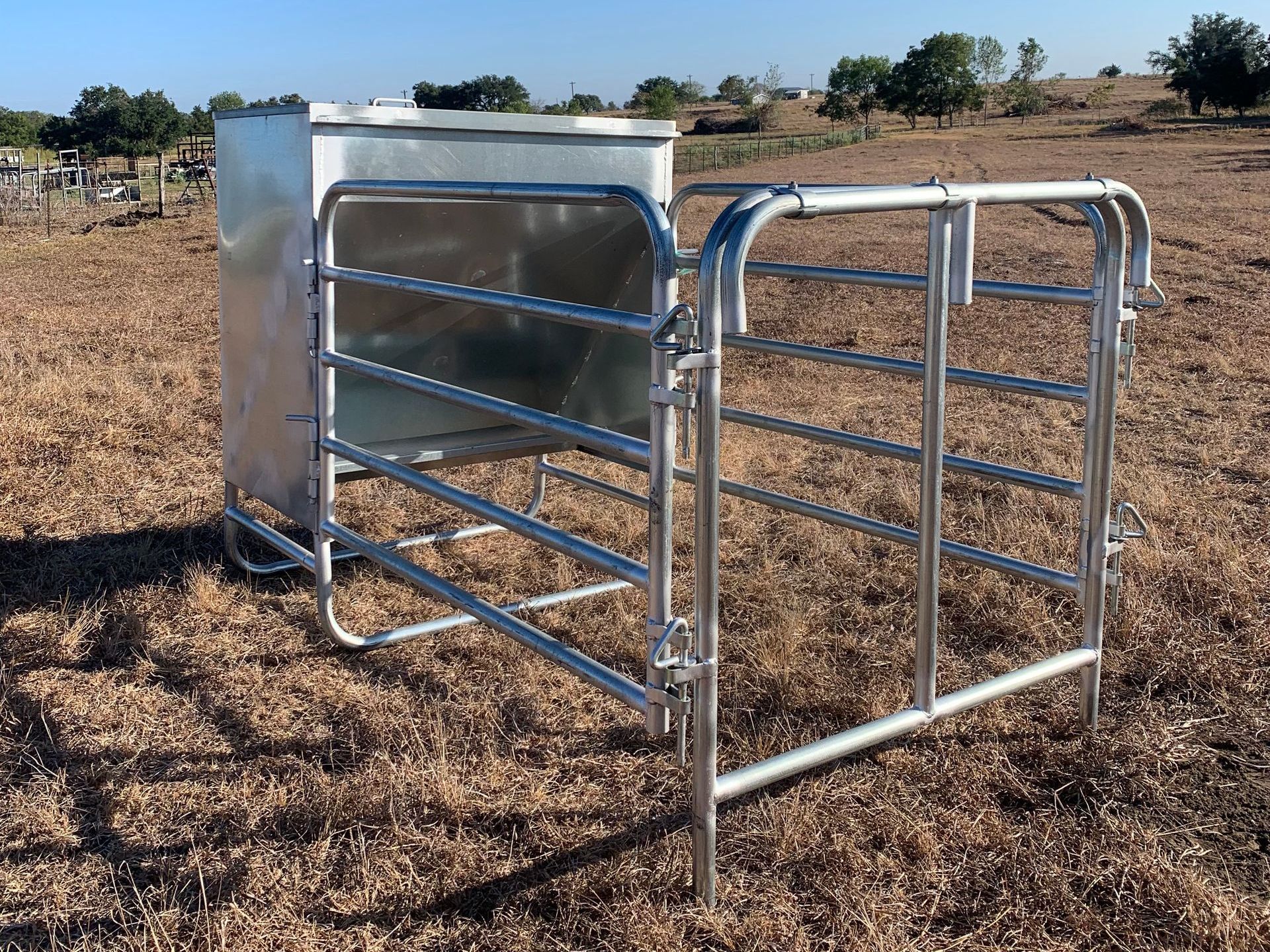

4' eCONOMY CALF CREEP FEEDER
For smaller operations, the 4’ economy calf creep feeder is a great choice. This feeder features a 16 gauge galvanized frame and a large lid that makes filling easy and accessible. The hinged panels make for quick set up and the adjustment bar on the creep entrance panel allows you to prevent larger calves from entering.
| PRODUCT NO. | STYLE | CAPACITY | WEIGHT | MSRP |
|---|---|---|---|---|
| 350-007 | 4' ECONOMY | 500 LBS |

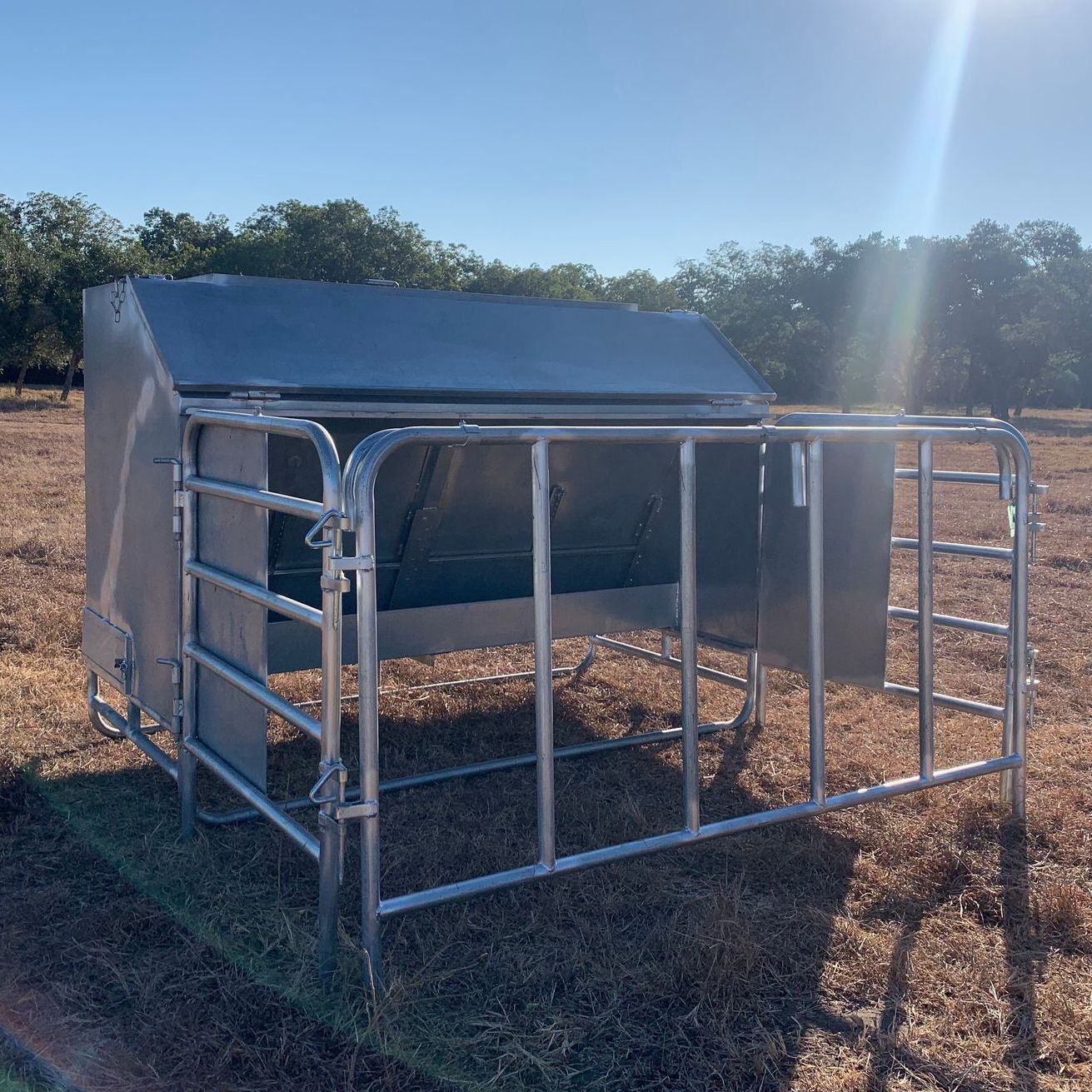

HEAVY DUTY CREEP FEEDERS

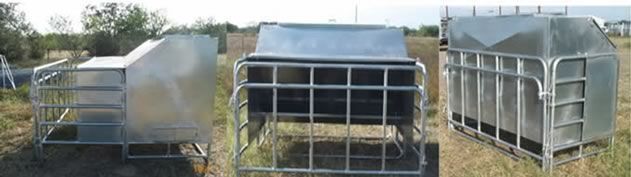

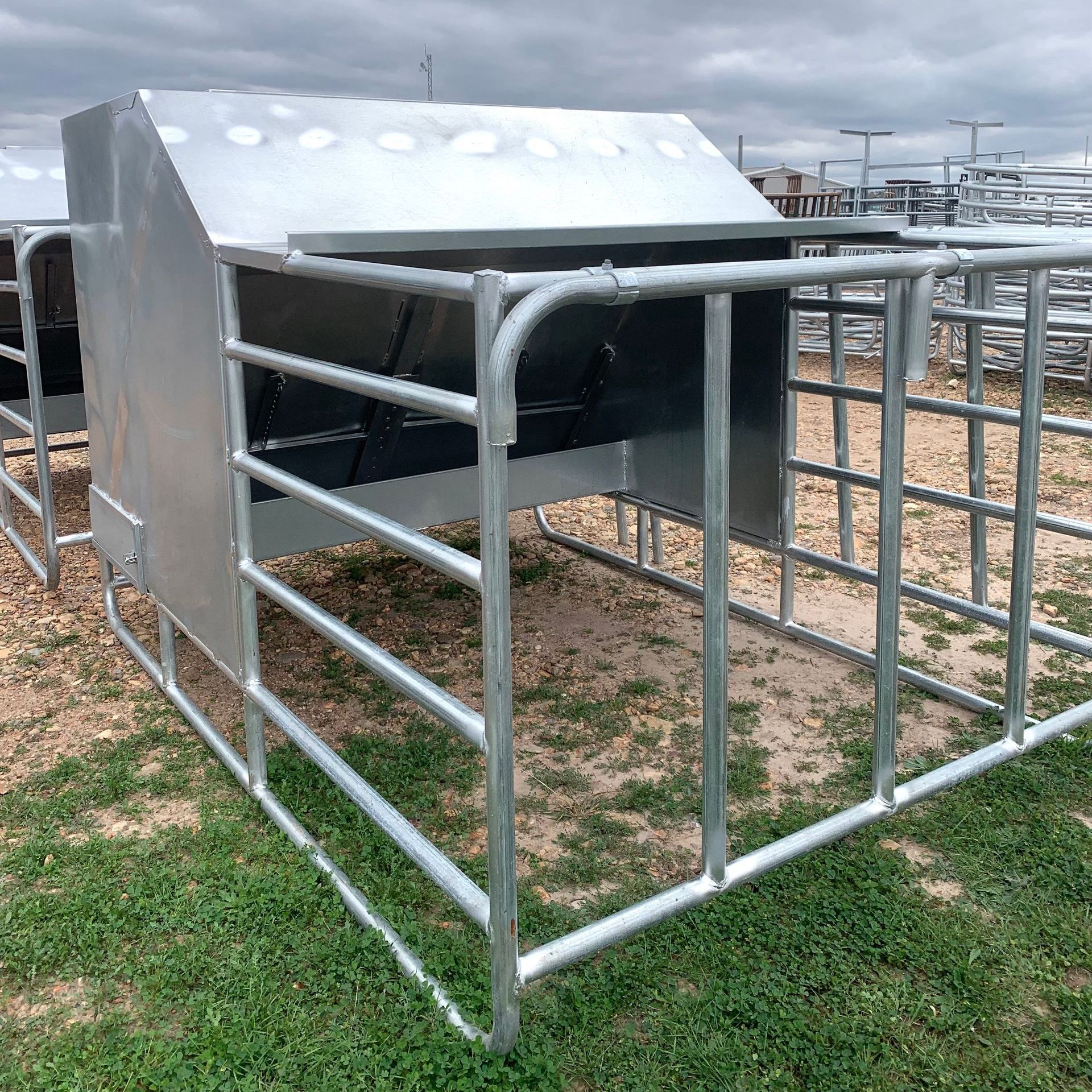

The 4’, 6’ rigid built, and 8’ creep feeders are made from 16 gauge G-90 galvanized sheet metal with 1 ⅝” schedule 40 galvanized skids. These models feature a poly trough, adjustable feed doors and an easily accessible clean out door on the end. 4’ and 8’ models have a collapsible hinged panel feed pen and the 6’ rigid built has a feed pen welded to the feeder. A large sliding lid on top makes filling the creep feeders easy. Feeders also come with a 1 ⅝” 16 gauge adjustable creep entrance panel that you can set the height to control feeder traffic. All welds after manufacturing are painted with cold galvanized paint and aluminum structural paint.
| PRODUCT NO. | STYLE | CAPACITY | WEIGHT | MSRP |
|---|---|---|---|---|
| 350-012 | 4' | 1000 LBS | 572 | |
| 350-024 | 6' Rigid | 2000 LBS | 672 | |
| 350-022 | 8' | 2000 LBS |
MINERAL FEEDERS

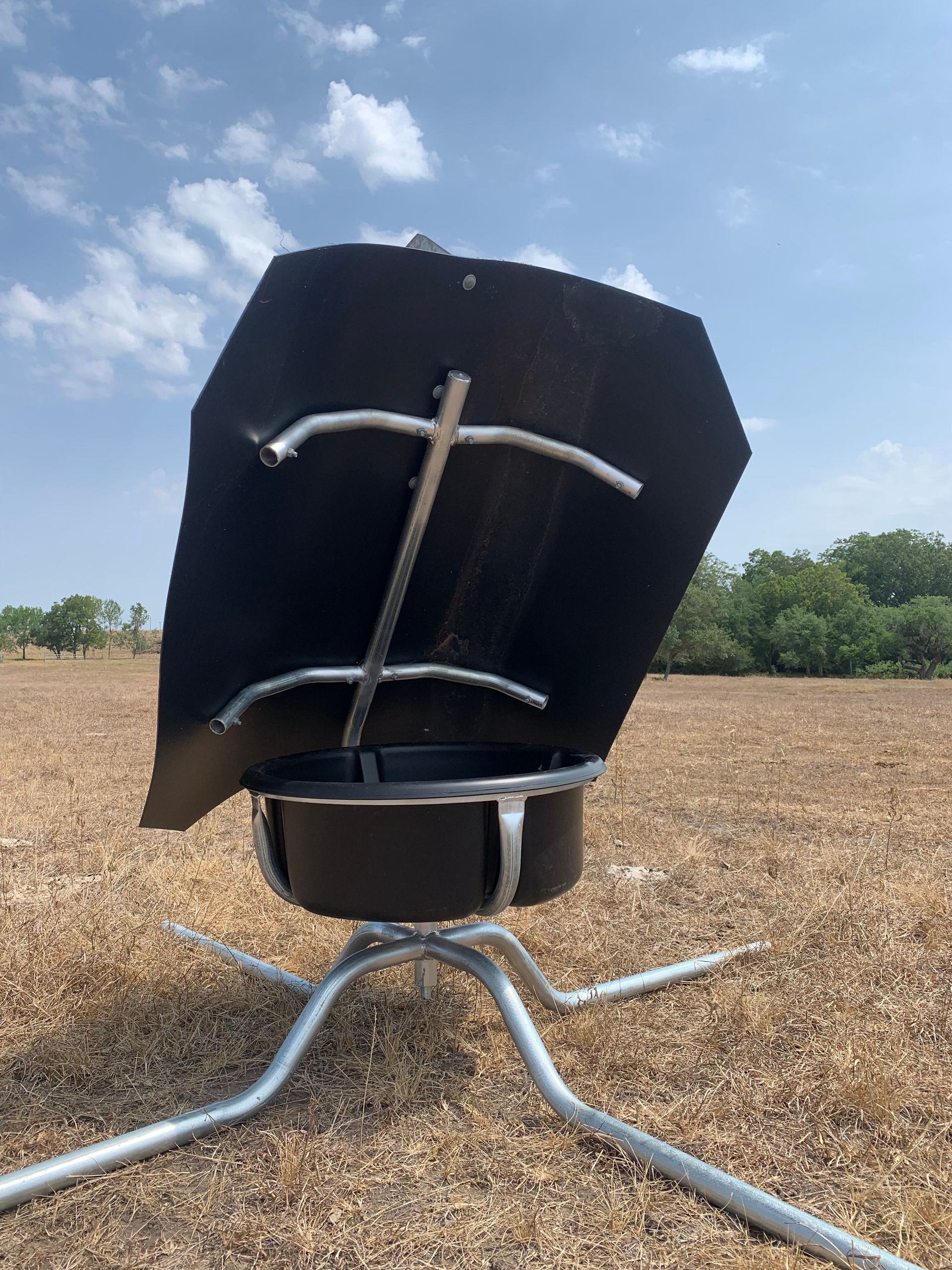

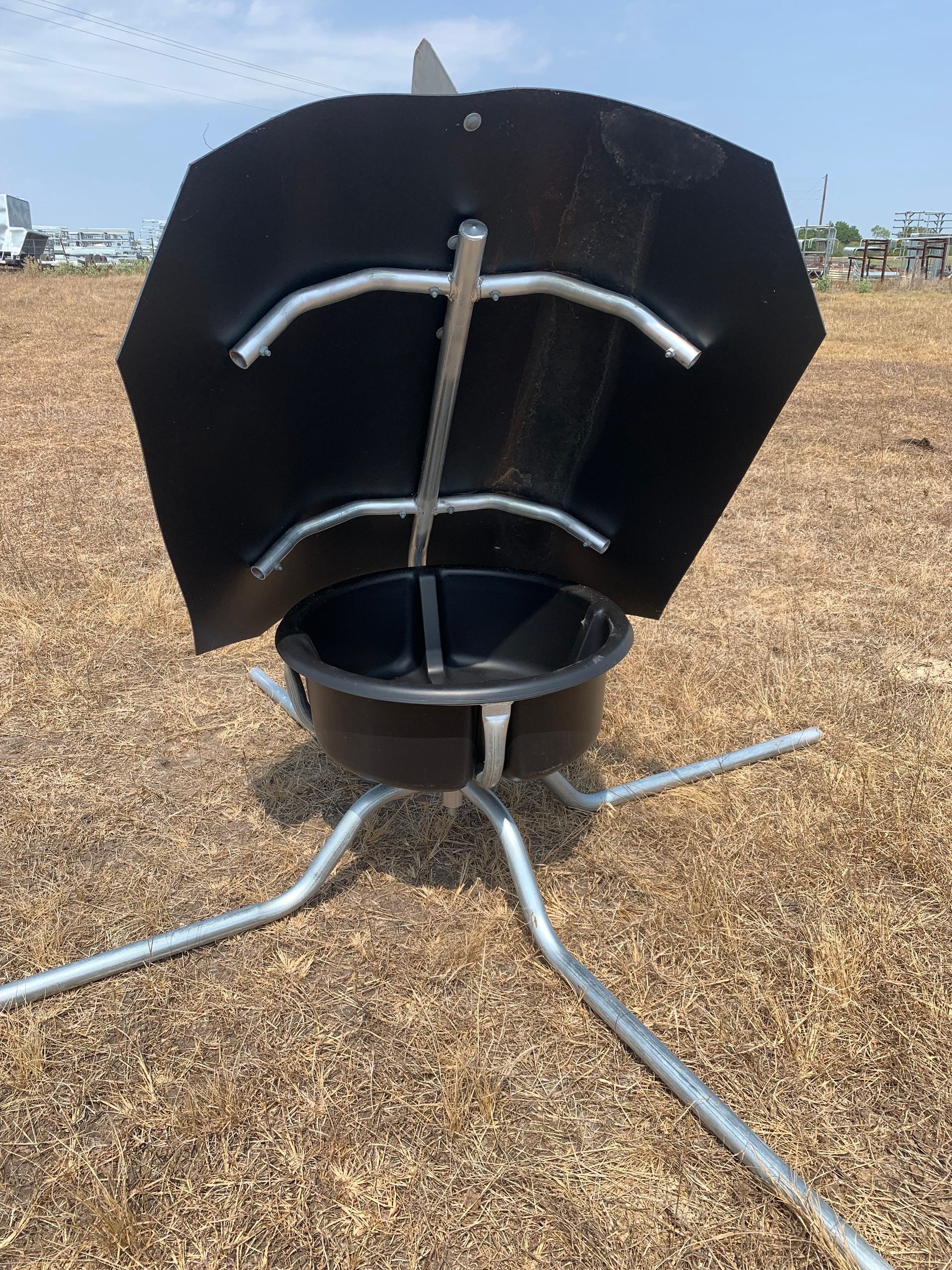

Windvane Mineral Feeder
Made with a heavy duty galvanized frame and a large durable poly hood, our Windvane Mineral Feeder pivots on bearings that allow easy turning in the slightest wind to keep mineral dry.
| PRODUCT NO. | WEIGHT | MSRP |
|---|---|---|
| 320-190 | 40 |

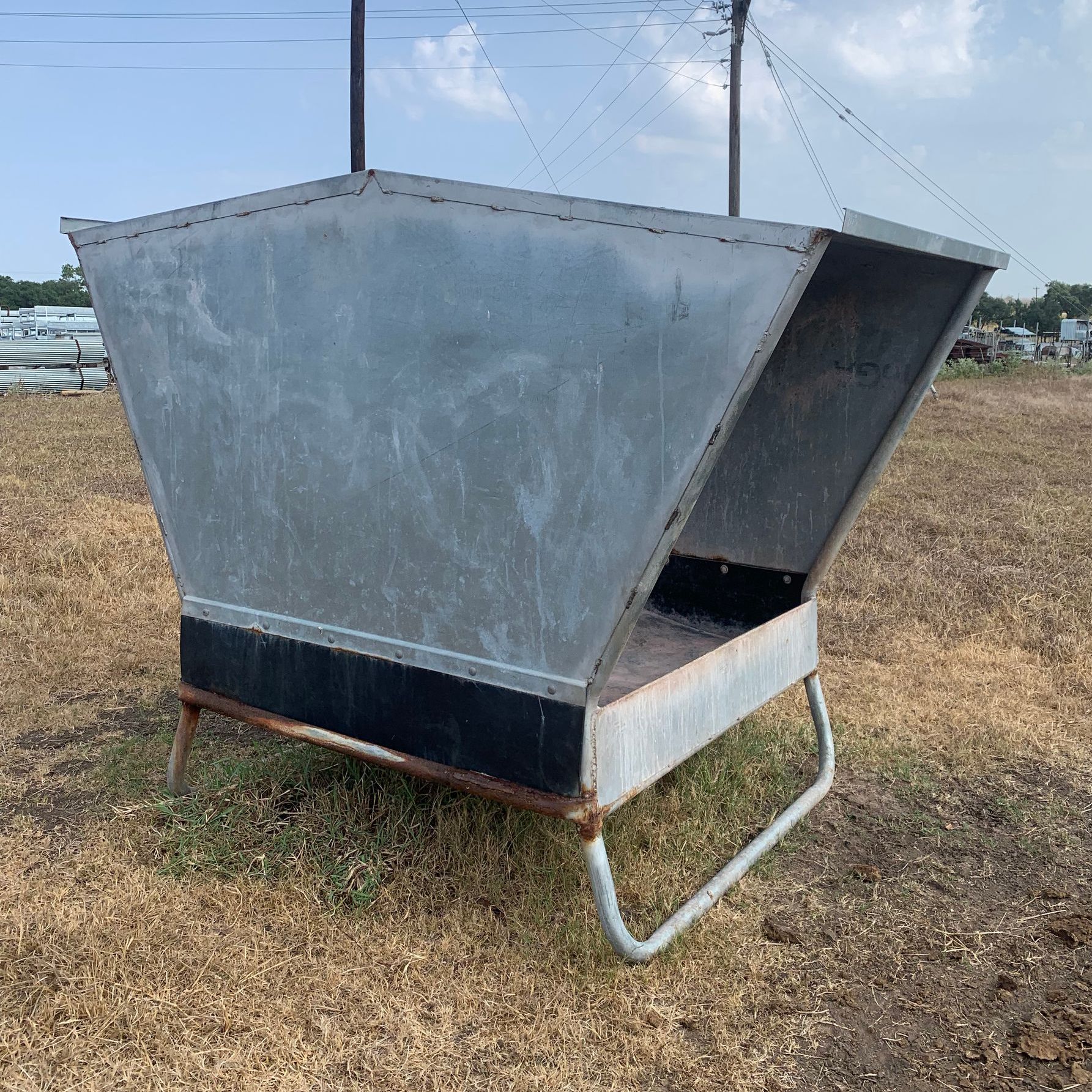

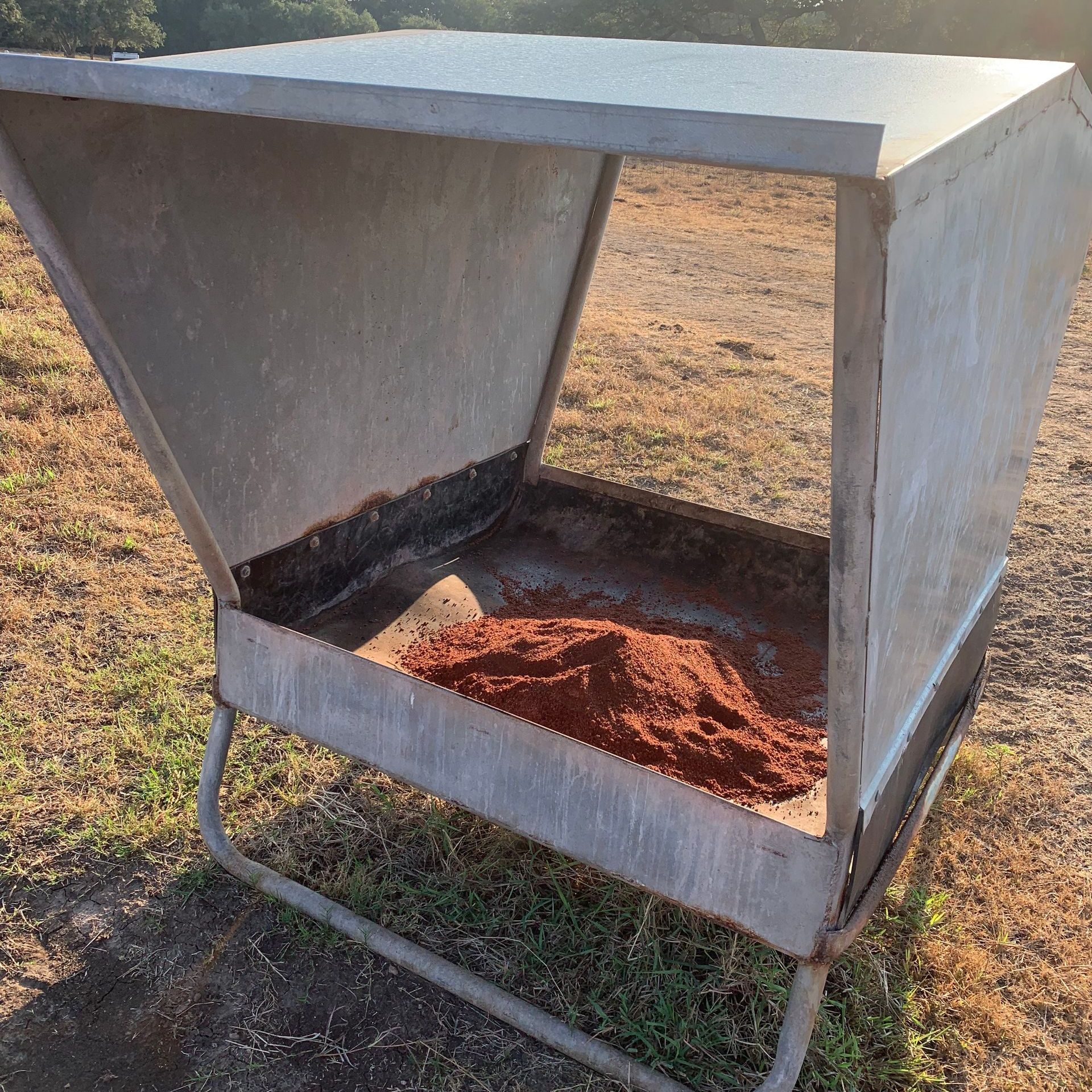

Free Standing Mineral Feeder
Made with 16 gauge G 90 sheet metal, our Freestanding Mineral Feeder has a 4’ wide poly trough. The feeder is 55” tall and has a top width of 78”, allowing mineral in the feeder to stay dry in any condition.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 320-197 | 4' | 332 | |
| 320-199 | 6' | 364 |
Ranger Blue 3 Bin Mineral Feeder
The Ranger Blue mineral feeder is constructed of durable poly and can hold approximately 250 lbs. of mineral.
| PRODUCT NO. | WEIGHT | MSRP |
|---|---|---|
| 320-194 | 40 |
hAY rINGS

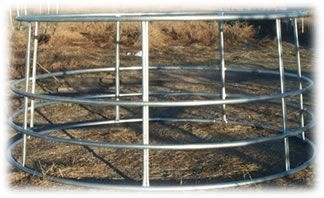

rgc One Piece Cattle Hay Rings
The RGC one piece hay ring
is constructed with 1 ¼” OD 14 gauge pre-galvanized pipe and stands 43” tall. Seven vertical stays hold up four rings that measure 86” on the top ring and 96” on the bottom ring. This allows the rings to be stackable when transporting.

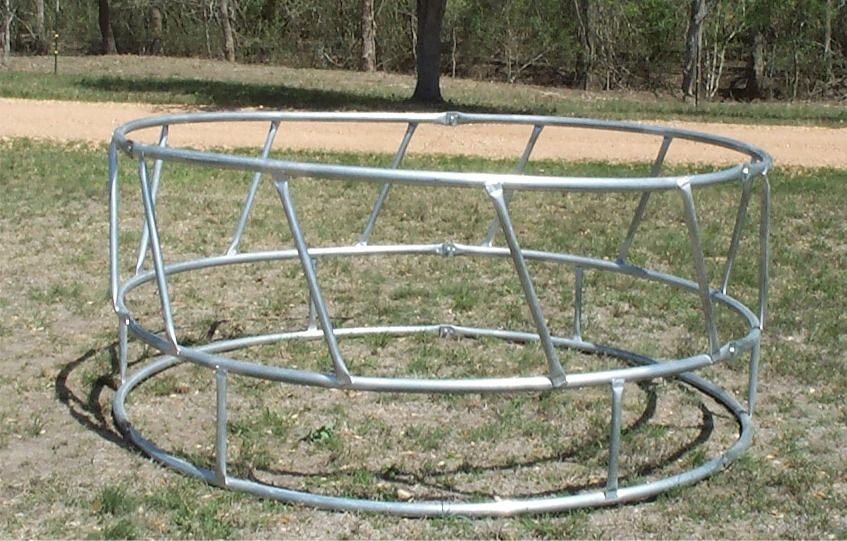

RGC 3pc Slant Bar Hay Ring
This 3 piece slant bar hay ring is made from
1 ¼” OD 14 gauge
RGC galvanized tubing and is 42” tall with a 8’ diameter and is complete with nuts, bolts and lock washers for easy assembly.

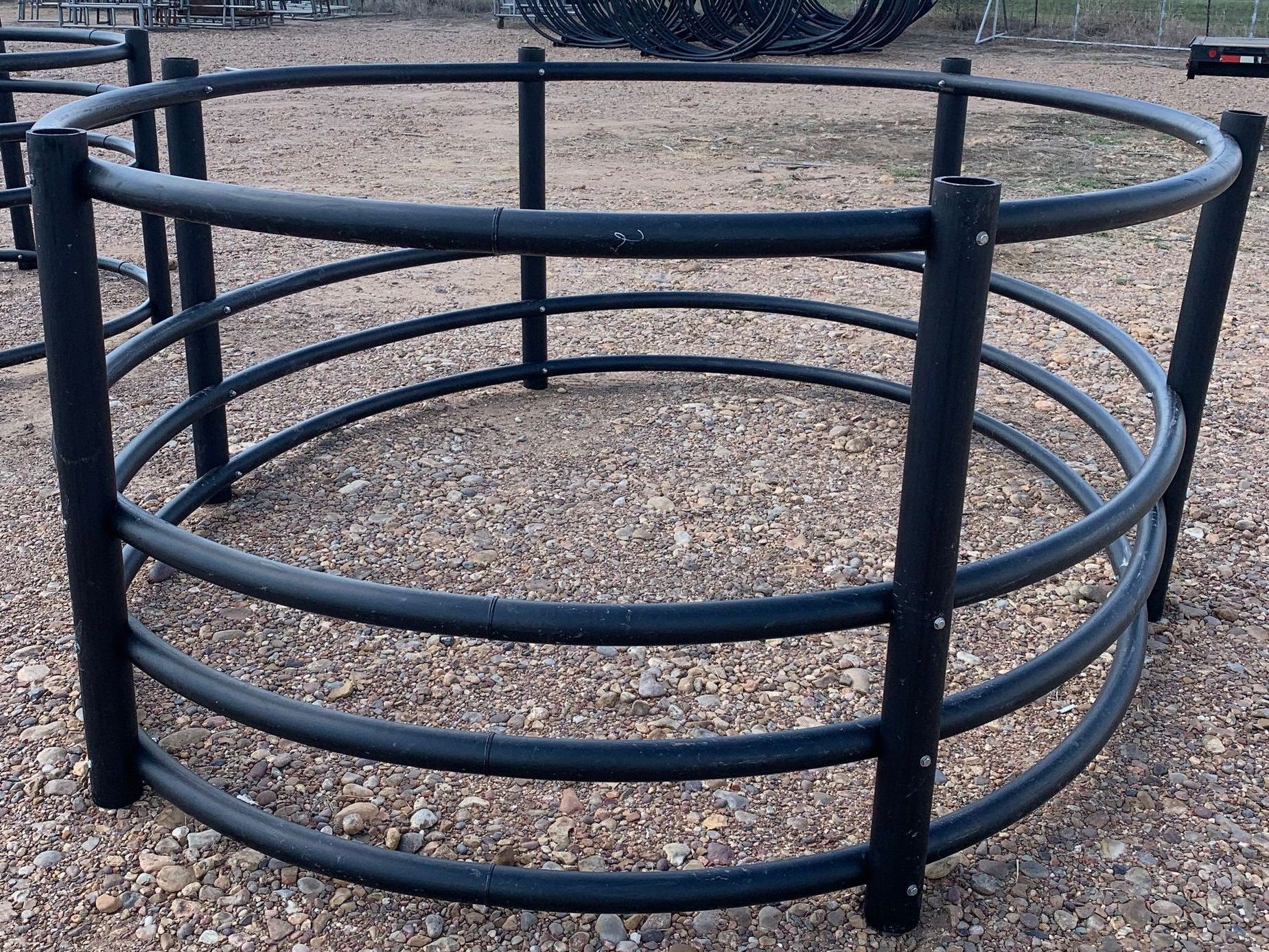

Poly Cattle Hay Ring
One of our best-sellers, our poly hay rings are 8’ in diameter and 48” tall, assembled with stainless hardware.
| PRODUCT NO. | WEIGHT | MSRP |
|---|---|---|
| 320-008 | 90 |

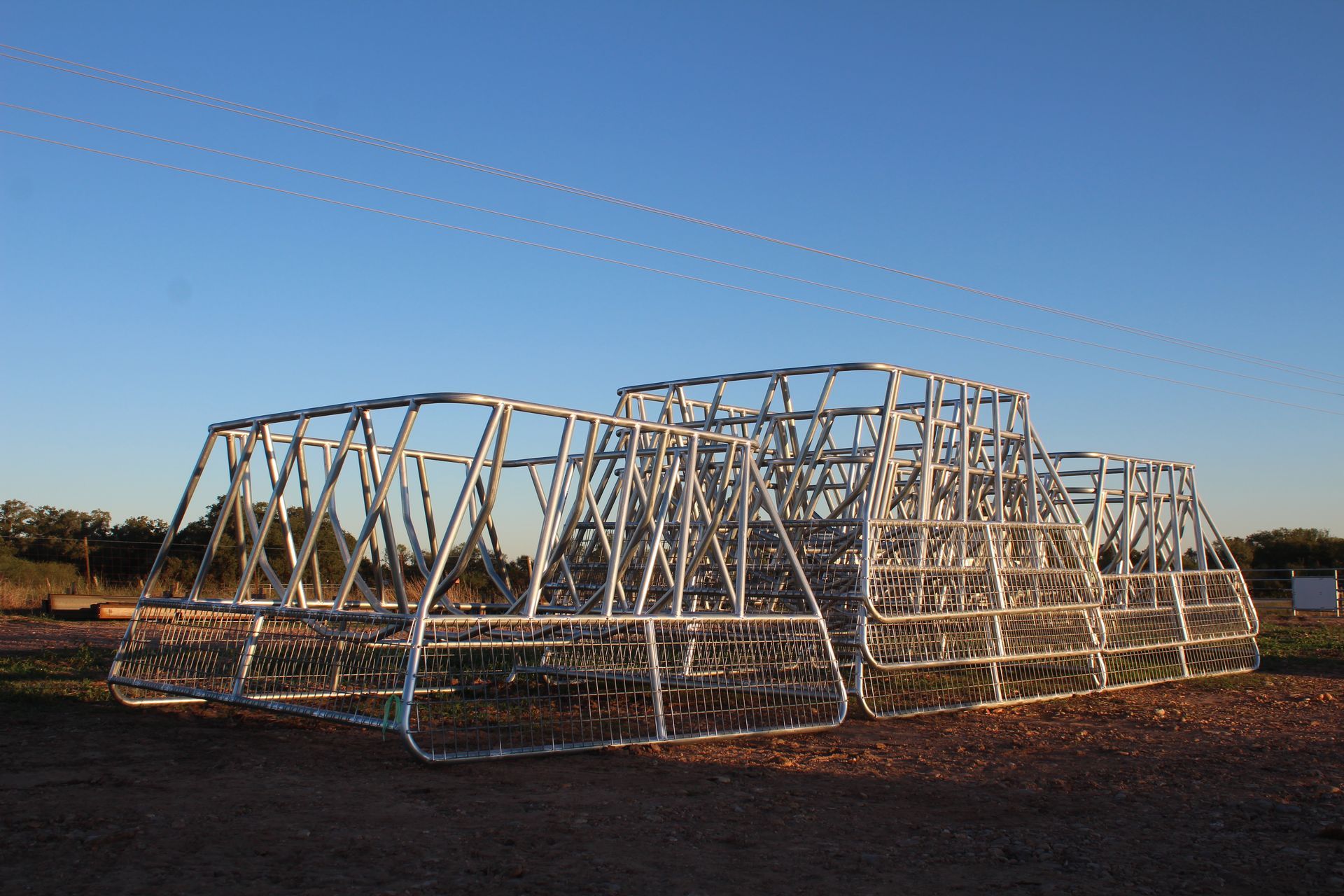

HAY SAVERS
Hay savers are made from 1 ⅝” Gatorshield heavy duty galvanized tubing and feature 2”x4” 6 gauge welded wire that helps to eliminate waste on the bottom of the unit. These feeders can be used with polled or horned cattle and it has proven to save up to 25% per bale. An easy swing gate is available for all models and all welds are saddled for added strength for many years of use. This feeder will pay for itself quickly, putting more money back in your pocket.

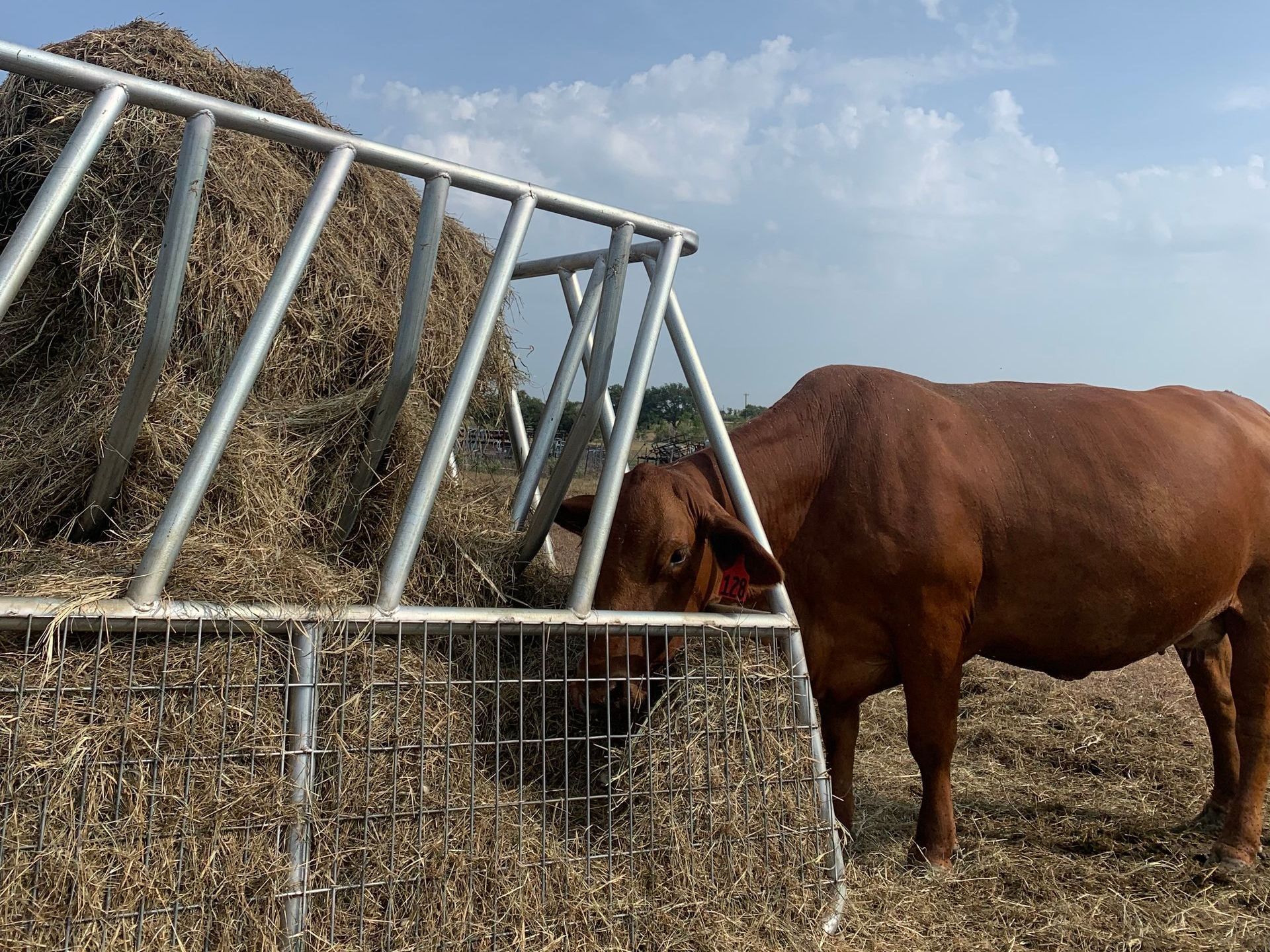

Gen 2 Single Bale Hay Saver
The Gen 2 Single Bale hay saver is our latest hay saver model based off of our original design. It features the same 2x4 wire cage around the bottom but uses less material at the top, making it more efficient for production and lowering the cost for you. The slanted bars offer maximum structural support and stability.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 320-023-17 | Gen2 | 308 |
Single Bale Hay Saver
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 320-023-01 | SINGLE BALE | 352 |
Double Bale Hay Saver
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 320-023-09 | DOUBLE BALE | 514 |

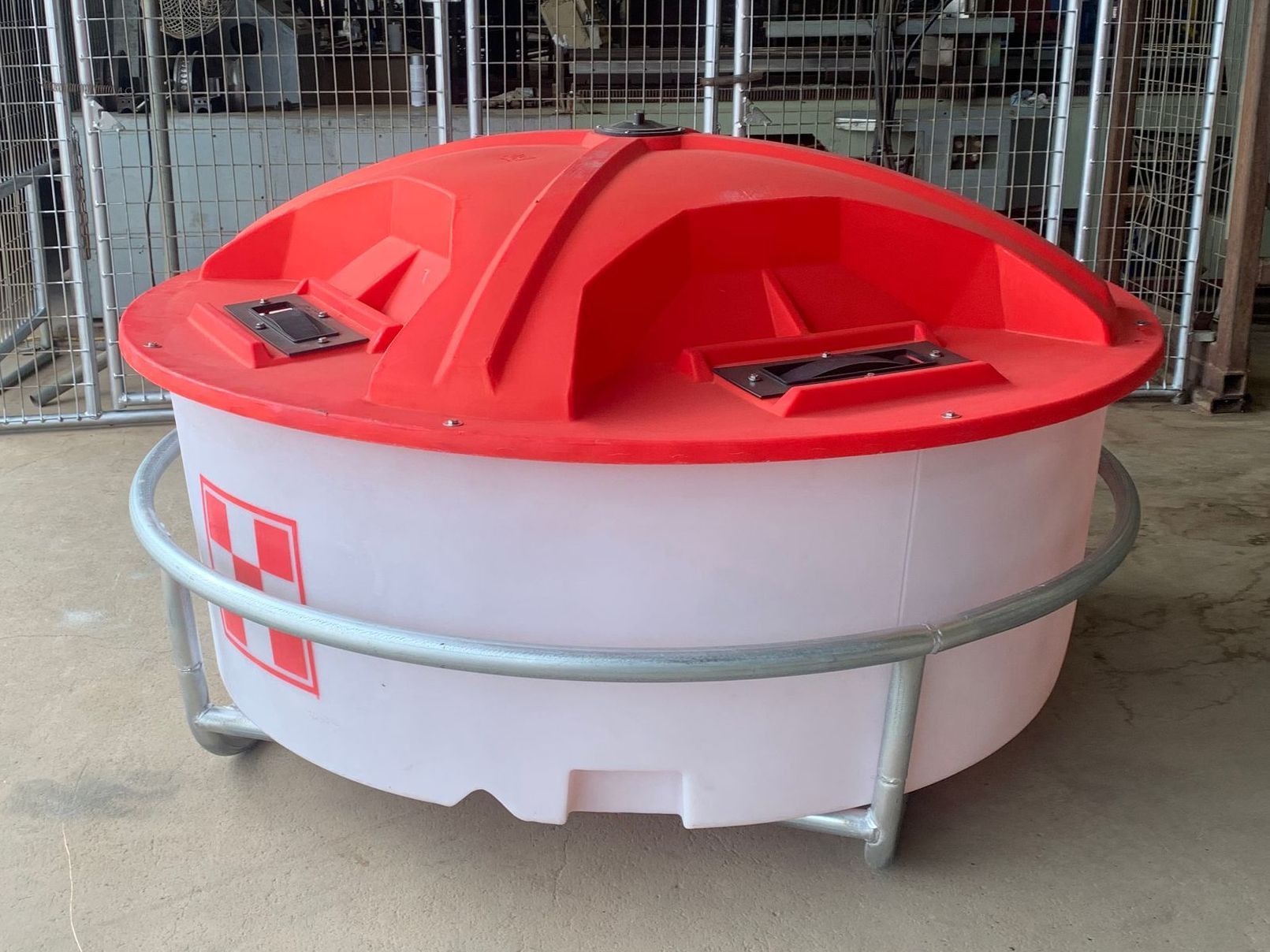

LIQUID FEEDER SKID

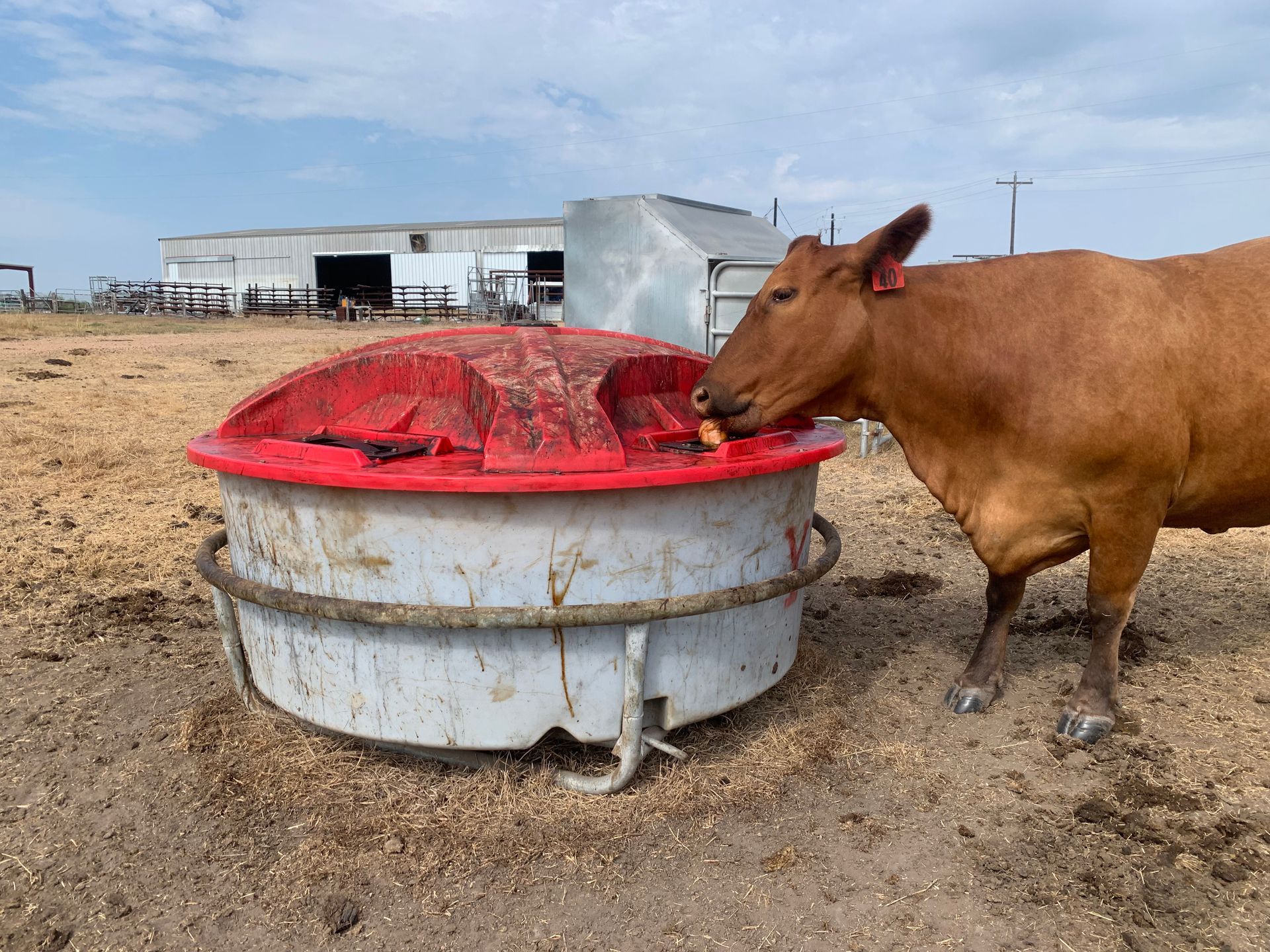

One of the most underrated products in our offering that you won’t find anywhere else, our liquid feeder skid makes moving liquid feed tubs a breeze. Made from 1 ½ Gatorshield tubing, it is stout enough to support and move full feeders. Two hooks are on the front of the skid to connect a chain or rope to move.

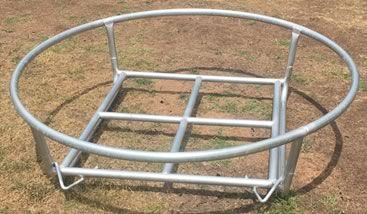

Liquid Feeder Skid
| PRODUCT NO. | WEIGHT | MSRP |
|---|---|---|
| 320-189 | 65 |
working pen components
Bow Gate
Ideal for working pens or a round pen, our 1 ⅝” 16 gauge galvanized bow gate is a great choice for confinement environments. Heights available are 7’ and 9’ ride-through gates. A 6 bar 52” tall gate matches a 64” tall panel when connected. Custom latch options available.
| PRODUCT NO. | LENGTH & HEIGHT | WEIGHT | MSRP |
|---|---|---|---|
| 272-060 | 4’X7’ | 70 | |
| 272-070 | 6’X7’ | 88 | |
| 272-080 | 8’X7’ | 104 | |
| 272-090 | 10’X7’ | 122 | |
| 272-100 | 12’X7’ | 140 |

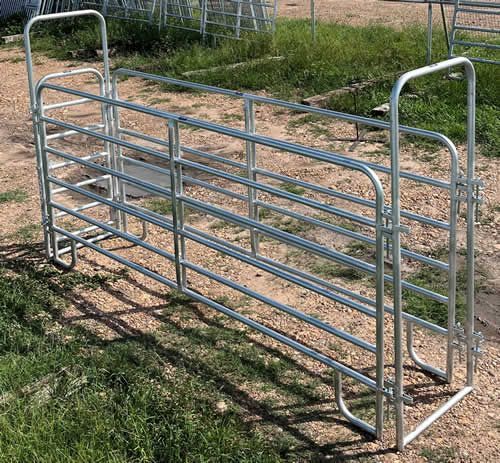

Alley BOWS & GateS
Our 1 ⅝” 16ga. heavy duty galvanized alley bows are available in four different options, allowing you to make any type of lead up system. Alley bows are 27” wide and 7’ tall.
“Front Gate” - swings to the inside
“Middle Gate” - swings both ways
“Back Gate” - swings to the outside
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 272-110 | ALLEY BOW | 20 | |
| 272-120 | ALLEY BOW W/FRONT GATE | 48 | |
| 272-121 | ALLEY BOW W/MIDDLE GATE | 48 | |
| 272-122 | ALLEY BOW W/BACK GATE | 48 |

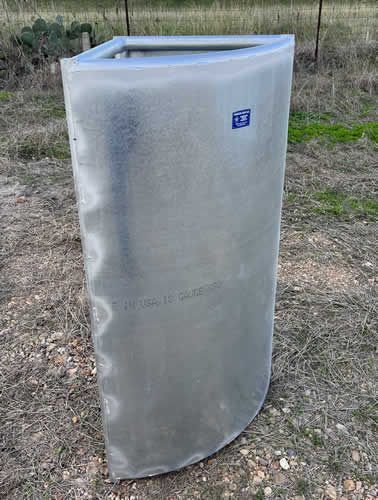

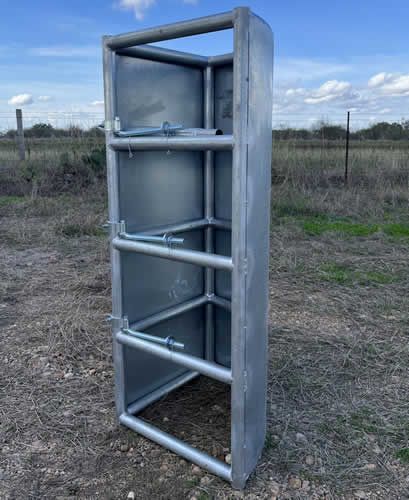

Triangle Gate
Used in alley ways for crowd control, the triangle gate is 60” tall and fits in a 27” wide alley. The triangle gate is constructed from 2” 16 gauge tubing and 18 gauge galvanized sheet metal, and includes two ¾ x 12” bolt hooks.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 272-350 | TRIANGLE GATE | 120 |

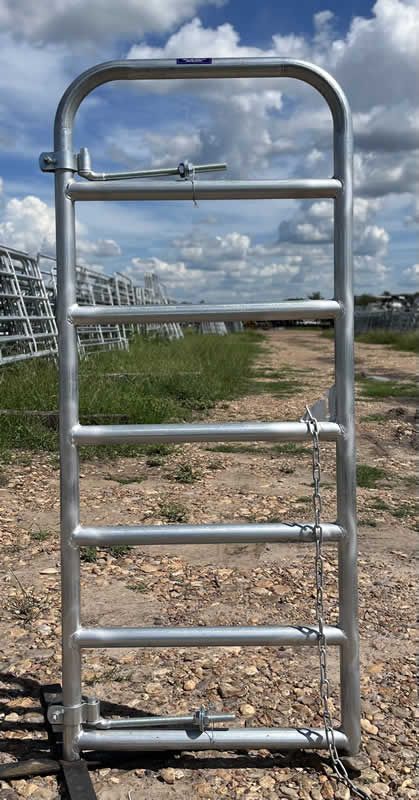

Chute Gate
Built to be installed on the front of an alley, the chute gate is built from 1 ⅝” 16 gauge galvanized tubing. The 7-bar gate is 60” tall and 27” wide and comes with hardware.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 279-510 | 60”X27” | 30 |

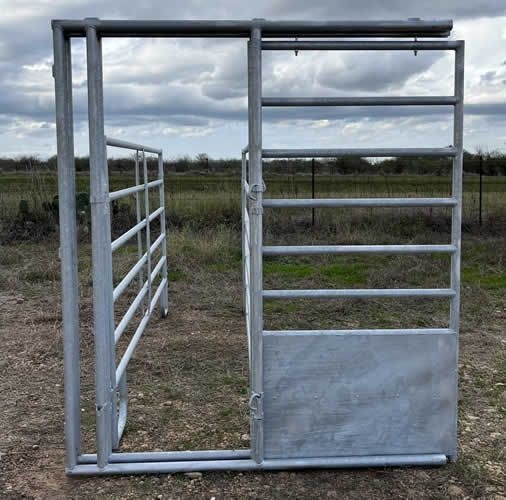

Sliding Gate

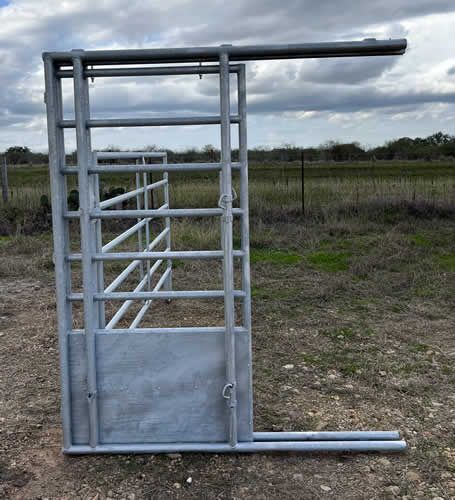

The sliding gate can be placed anywhere in your alley way set up . Use it to separate and hold cattle in the alley. Sheet metal is on the bottom of the gate and 1 ⅝ 16 gauge tubing makes up the 7’ tall 27.5” wide sliding gate. The gates slides on a track on the top and bottom of the frame that gives it support from cattle pressure.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 279-600 | GALV | 172 | |
| 279-605 | HOT DIPPED | 180 |
Palpation Gate
Make palpating safe by installing a Ranger Gate palpation gate. This 7’ tall 27” wide gate has two gates that lock with spring latches to stop cattle in the alley and allow you to get behind the squeeze chute and palpate or doctor on cattle. Its 1 ⅝” 16 gauge galvanized tubing frame is stout and dependable in crowded alley situations.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 279-610 | GALV | 118 | |
| 279-615 | HOT DIPPED | 125 |
Sorting Gate

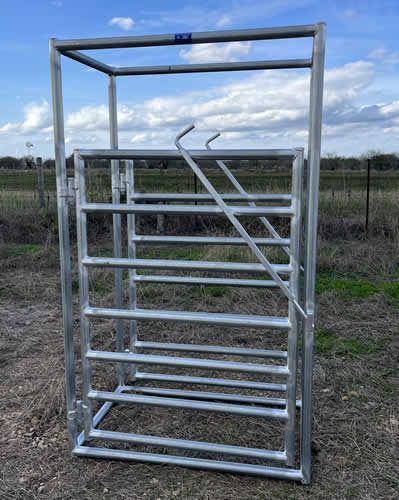

Sorting is one of the main practices when working cattle. Make the job easier with our sorting gate. There are two 42” gates with drop rods that swing inside that allow cattle to either go right or left from the alley. The frame is 7’ tall and 27.5” wide, and is made from 1 ⅝” 16 gauge tubing.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 279-620 | GALV | 180 | |
| 279-625 | HOT DIPPED | 188 |

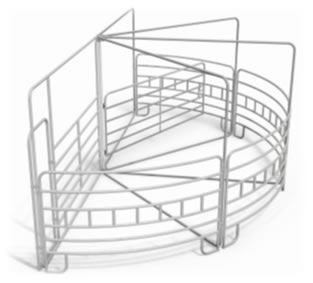

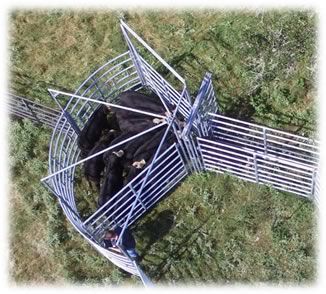

Sweep System
The Ranger Gate sweep system is made from 1 ⅝” 16 gauge galvanized or hot dipped tubing and is 64” tall. Curved panels make up the bend in the sweep system and a self latching gate pushes around the sweep to push cattle into an alleyway. Held together with panel clamps, the system is portable and easy to take down and set up if needing to move locations. Sweep systems can swing right or left depending on your preference.
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 270-376 | 180 DEGREE SWEEP | 690 | |
| 270-378 | 90 DEGREE SWEEP | 484 | |
| 270-380 | 8’ CURVED PANEL | 70 | |
| 270-390 | 10’ PANEL W/27” BOW | 114 | |
| 270-400 | 10’ SWING BOW GATE | 198 | |
| 270-410 | RADIUS BAR | 32 |
| PRODUCT NO. | STYLE | WEIGHT | MSRP |
|---|---|---|---|
| 270-476 | HOT DIPPED 180 DEGREE SWEEP | 575 | |
| 270-478 | HOT DIPPED 90 DEGREE SWEEP | 398 | |
| 270-480 | HOT DIPPED 8’ CURVED PANEL | 60 | |
| 270-490 | HOT DIPPED 10’ PANEL W/27” BOW | 86 | |
| 270-500 | HOT DIPPED 10’ SWING BOW GATE | 164 | |
| 270-510 | HOT DIPPED RADIUS BAR | 28 |
Trailer Inserts
TRAILER INSERT
The trailer insert features a heavy duty galvanized tubing construction with a sheet metal bottom barrier. It is designed to fit on lowboy and gooseneck trailers all inserts come with a self latching center gate and a full swing rear and sliding gate. Inserts are easy to load and unload in a matter of minutes. Inserts are 6’ 4” wide and are 6’ tall and come in three different lengths.
| PRODUCT NO. | LENGTH | WEIGHT | MSRP |
|---|---|---|---|
| 000-200 | 16' | 850 | |
| 000-210 | 18' | 890 | |
| 000-220 | 20' | 930 |
